Mini-nut, ER16, P/N MN-C
Type: ER16
Thread: M19 x 1.00
Outer Diameter: 22mm
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
$28.00

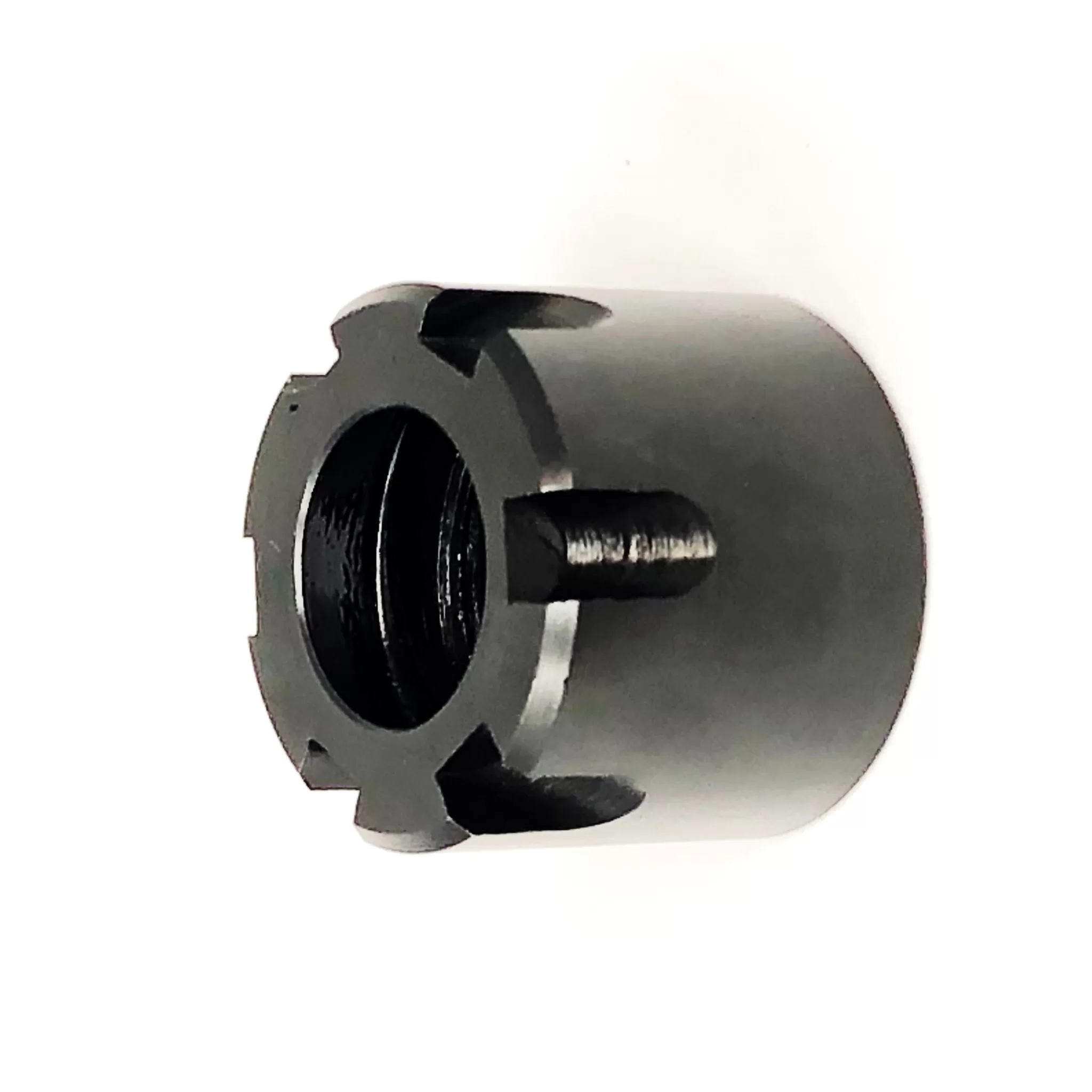

ER16 Mini-nut
ER16 Mini-nut is slotted with smaller profile compared to standard ER16 slotted nuts. The outer diameter is 22mm compared to 29mm on the standard nut. The thread is also different than the standard nut (M19 x 1.00 vs M21 x 1.50).
Outer diameter is 22mm. Use with wrench WR-CM.
ER16 Mini-nut has M19 X 1.00 Thread.
Recommended Max Torque:
1.0 mm – 6 ft/lbs
1.5 – 3.5 mm – 15 ft/lbs
4.0 – 10 mm – 18 ft/ lbs
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1.17 × 1.17 × 0.39 in |
