HSK 32E Tool Gripper Forms ACE P/N G01-11

HSK 32E Tool Gripper Forms ACE

DIN 69893

Replaces OTT Jakob and REBO grippers.

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com


SKU: G01-11 Categories: ,
  • Description
  • Additional information


HSK 32E Tool Gripper Forms ACE


HSK 32E Tool Gripper Forms ACE PN G01-11

Material: Through hardened alloy steel. Precision ground surfaces. Low friction coating.

Manufacturer: Made in Italy.

Balance Grade: <G2.5 @ 24,000 rpm

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool grippers for scoring or wear. Replace if worn or damaged.

Weekly: Check gripper for damage and debris build up. Apply light coat of anti seize if needed.  METAFLUX Moly-Spray No.70-82 is recommended.

Every Six Months: Measure the “E.M” dimension, adjust if necessary. Test clamp force if able.

Compatibility: All HSK 32E, 32A and 32C spindles. Also, HSK 40B, 40D and 40F. The tool gripper is interchangeable with these grippers:

Bellodi Tibi Rebo 41.104.02                    Ott Jakob: 95.600.008.3.6               IMS AAN01 (old P/N H40BDFP1160)

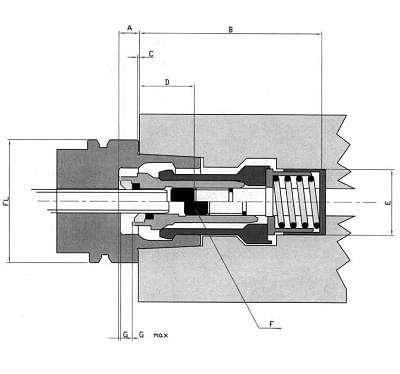

Dimensions (mm): A = 8.5    B = 62.5    C = 0.5    D = 19.5    E = 17   F = CH3    G = 7.5

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.

HSK World: HSK Links

HSK 32E Tool Gripper Forms ACE PN H32ACEP1160 requires a tool to be present if the spindle is rotating.

Additional information

Weight.2 kg
Dimensions3 × 3 × 6 cm
