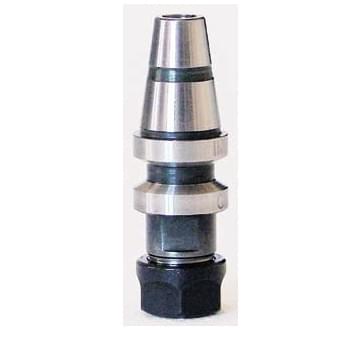

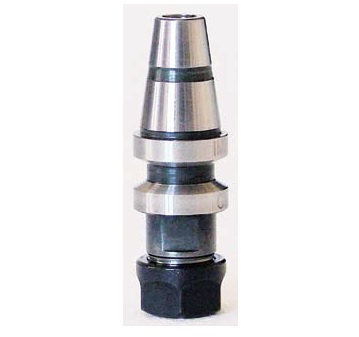

ISO20 ER20 Short Style Tool Holder P/N 120-D-S

-10%

ISO20 ER20 Short Style Tool Holder P/N 120-D-S

ISO20 Tool holder with nut

For Elte and Giordano Colombo Spindles

Collet Type: ER20    Capacity 1 to 13 mm

Dimensions (mm): L: 55.6   L1: 45   D: 28

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$216.00 $194.00

SKU: 120-D-S Category:
  • Description
  • Additional information

Description

ISO20 Tool Holder with Nut

Specifications:

ISO20 Tool Holder Collet Size: ER20

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 59 ft/lbs Over  1/16″ Collet I.D.  and 24 ft/lbs Under 1/16″ Collet I.D.

Balance Grade: G2.5 @ 24,000 rpm

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

Compatibility: Most commonly used in Elte and Giordano Colombo spindles.

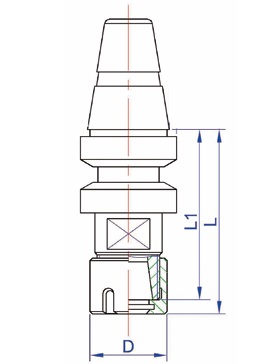

Dimensions (mm): L: 55.6    L1: 45    D: 28

Equivalent to IMS P/N WF204

Back to Home Page: link

Additional information

Weight.35 kg
Dimensions4 × 4 × 7 cm
