Pull Stud Elte Style

ISO30 Pullstud Elte Style P/N PS-F-E

ISO30 Pullstud Elte Style

DIN 69872

13 mm Diameter Tip

9 mm Diameter Shank Terminated in 15 Degree Chamfer

Call for back order status or multiple order discount

Type: ISO30 Pullstud for Elte, Omlat, IBAG, Giordano Colombo

Use with ISO30 Gripper, Petal Collet

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$30.00

ISO30 Pullstud  Elte Style

Specifications:

ISO30 Pullstud DIN 69872 Elte Style is the same size as typical ISO30 pullstuds. The tip is 13 mm in diameter and the pull stud body where the clamp group rests in 9 mm. For safety reasons, it is important to have the proper size.

The other notable difference is the way the 9 mm shaft blends into the tip. This style has a 15 degree chamfer.

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 36 ft/lbs, Use high strength loctite when installing. The thread is M12 x 1.75.

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Replace if worn or damaged. If pull stud is worn the tool gripper may be worn as well. Use this gripper.

Compatibility: Common in these spindle manufacturers: Elte, Omlat, IBAG, Giordano Colombo, S Accordo. Equivalent to IMS W972B.

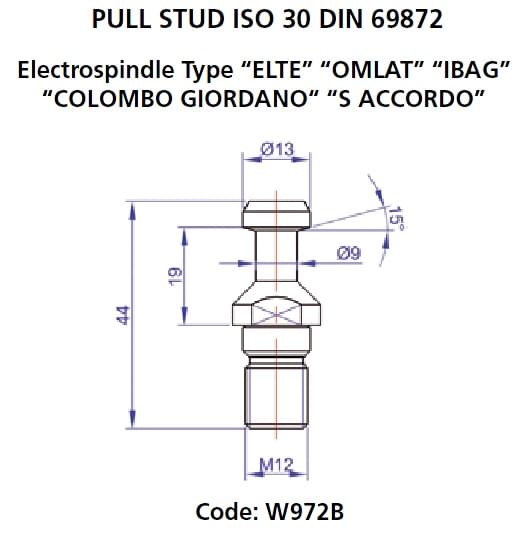

Dimensions (mm): Refer to picture gallery for dimensions.

Weight 0.22 lbs
Dimensions 1.95 × 0.78 × 0.78 in
