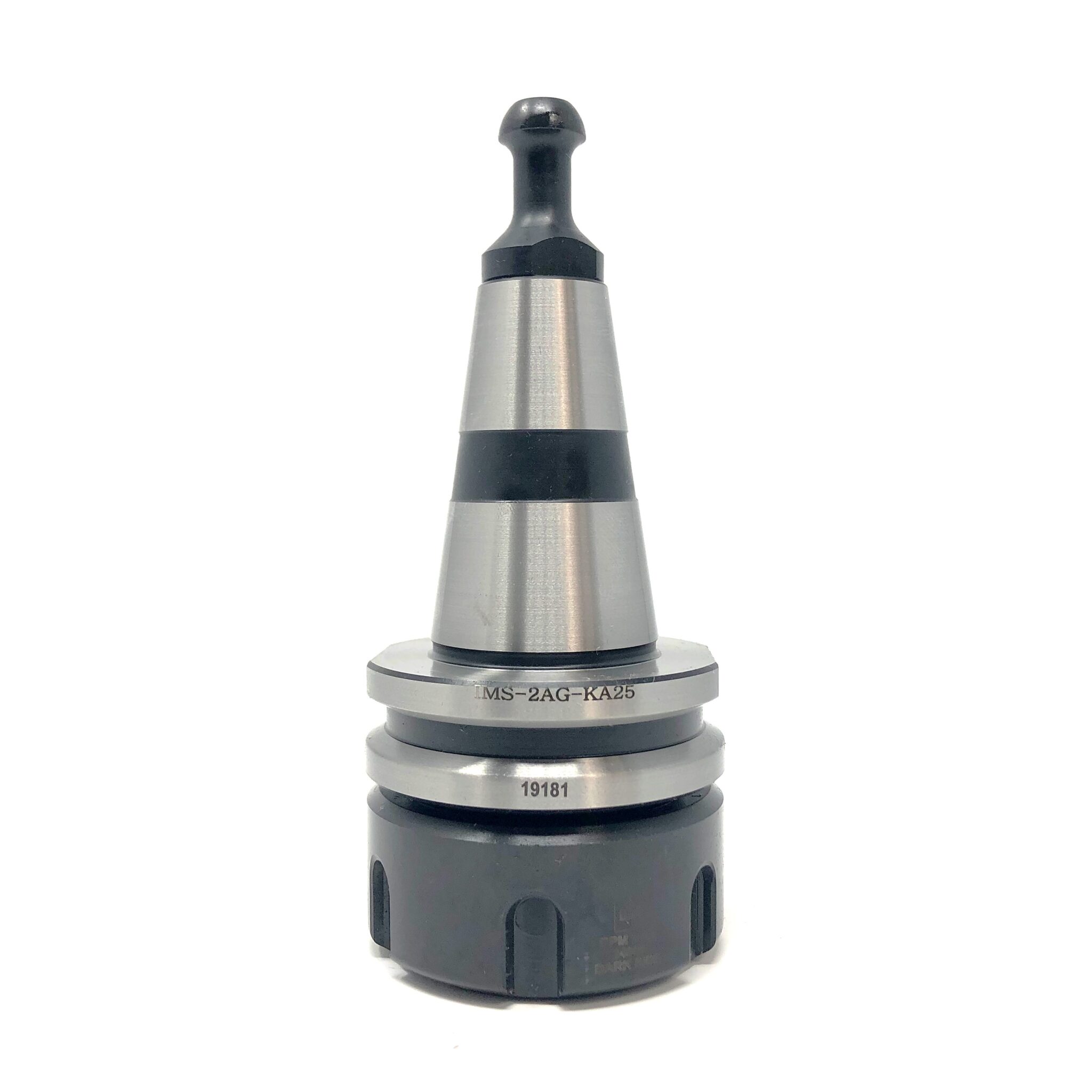

ISO30 ER32 Extra Small Style Tool Holder P/N I30-F-XS
ISO30 Tool holder for Biesse Type or HSD
Extra short style. Comes with nut.
Collet Type: ER32 Capacity 3 to 20 mm
Dimensions (mm): L: 48.5 L1: 36 D: 50
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
Original price was: $210.00.$129.00Current price is: $129.00. $116.10
ISO30 Tool Holder ER32 Short Style, I30-F-XS
Specifications:
ISO30 Tool Holder Collet Size: ER32
Material: Through hardened alloy steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Recommended Torque: 100 ft/lbs
Balance Grade: G2.5 @ 24,000 rpm
Maintenance: Protect from rust with rust preventative spray. Remove preventative before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.
Compatibility: Can be used on Biesse machines with HSD spindles.
Note: Extra short type with flat on first flange.
Dimensions (mm): L: 48.5 L1: 36 D: 50
Equivalent to IMS P/N W502 or W503
| Weight | 2.75 lbs |
|---|---|
| Dimensions | 5.85 × 3.12 × 3.12 in |
