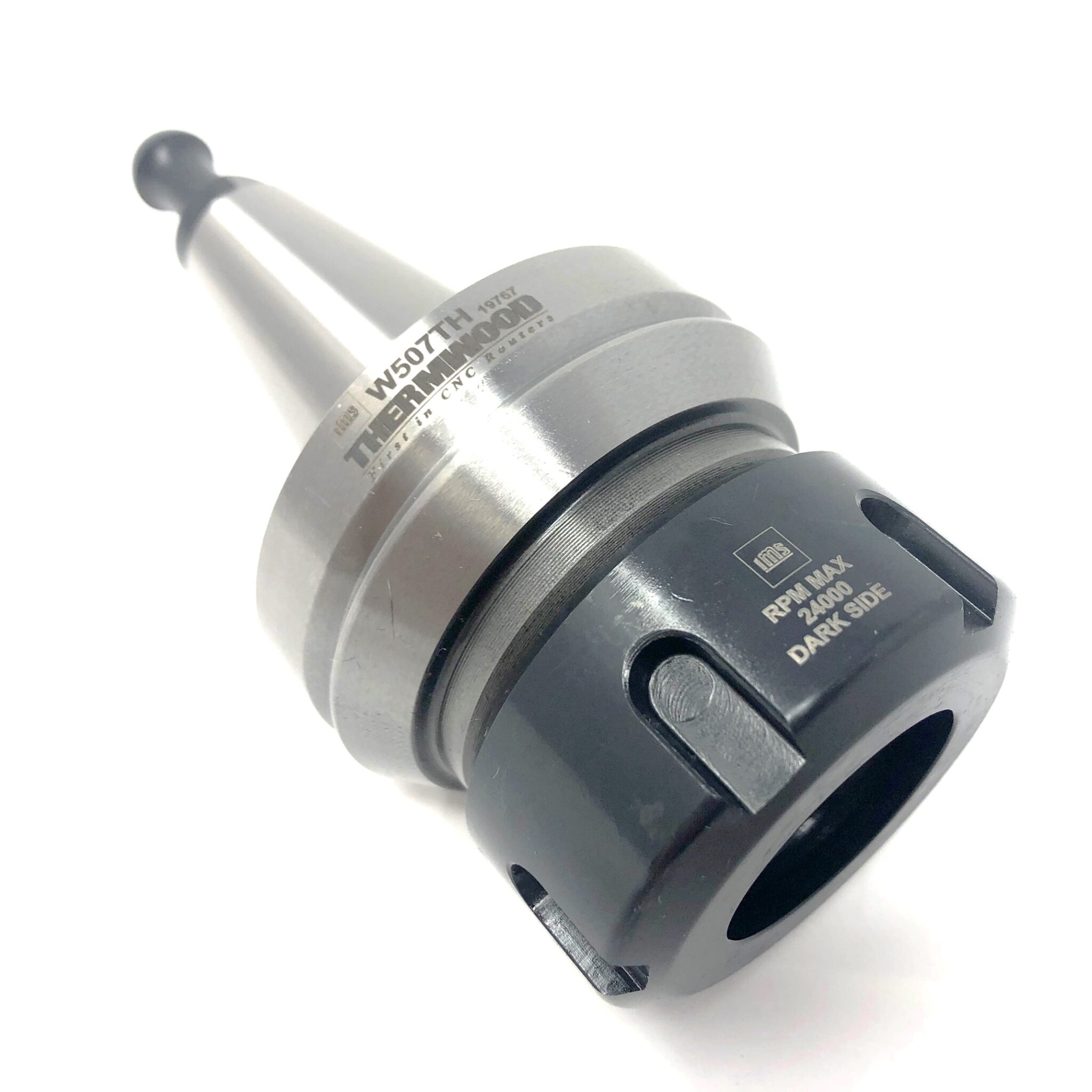

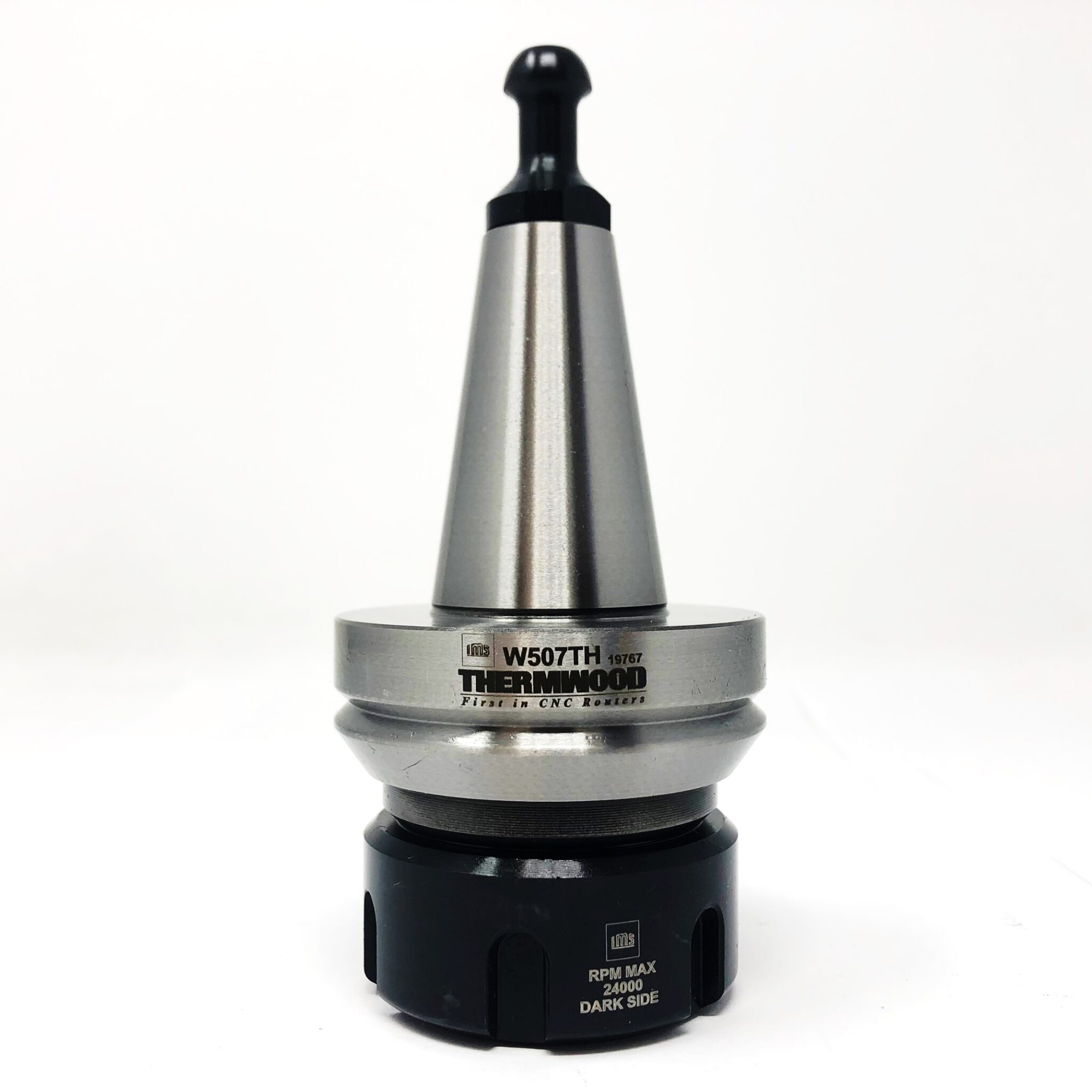

ISO30 ER32 Tool Holder P/N I30-F-TH

ISO30 Tool holder with nut for Thermwood CNC with HSD Spindle

Collet Type: ER32    Capacity 3 to 20 mm

Dimensions (mm): L: 57.5   L1: 45   D: 50

57 mm Diameter Flange

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$249.00 $224.00

SKU: I30-F-TH Category:
  • Description
  • Additional information

Description

ISO30 Tool Holder with Nut for Thermwood CNC Routers

Tool Holder Specifications:

ISO30 Tool Holder Collet Size: ER32

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 100 ft/lbs

Balance Grade: G2.5 @ 24,000 rpm

Maintenance:  Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

Compatibility:  Tool holder can be used with Thermwood CNC  routers with HSD spindle. Use with  PS-F-B pullstud.

Dimensions (mm):  L: 57.5    L1: 45    D: 50. Tool holder has a 57 mm diameter flange.

Equivalent to IMS P/N W507TH

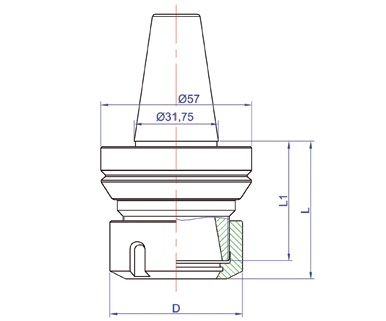

Refer to picture gallery for dimensions.

Additional information

Weight.64 kg
Dimensions6 × 6 × 7 cm
