HSK 32E ER20 Tool Holder P/N H11-D-SB

HSK 32E Tool holder with mini-nut

G2.5 @ 50,000   DIN 69893

Collet Type: ER20    Capacity 1 to 13 mm

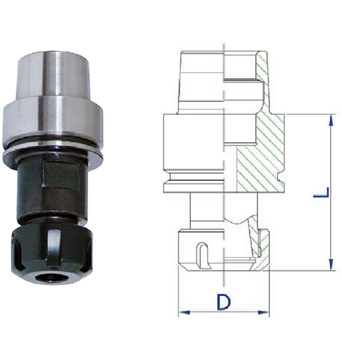

Dimensions (mm): L: 40   D: 28

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$216.00 $195.00

SKU: H11-D-SB Category:
  • Description
  • Additional information

Description

HSK 32E Tool Holder with Nut

Specifications:

HSK 32E Tool Holder Collet Size: ER20

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 59 ft/lbs Over  1/16″ Collet I.D.  and 24 ft/lbs Under 1/16″ Collet I.D.

Balance Grade: G2.5 @ 50,000 rpm

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

Compatibility: All HSK 32E spindles up to 50,000 rpm.

Dimensions (mm): L: 40    D: 28 (Mini-nut)

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.

HSK World: HSK Links

32E Tool Holder ER20

Additional information

Weight.35 kg
Dimensions3 × 3 × 6 cm
