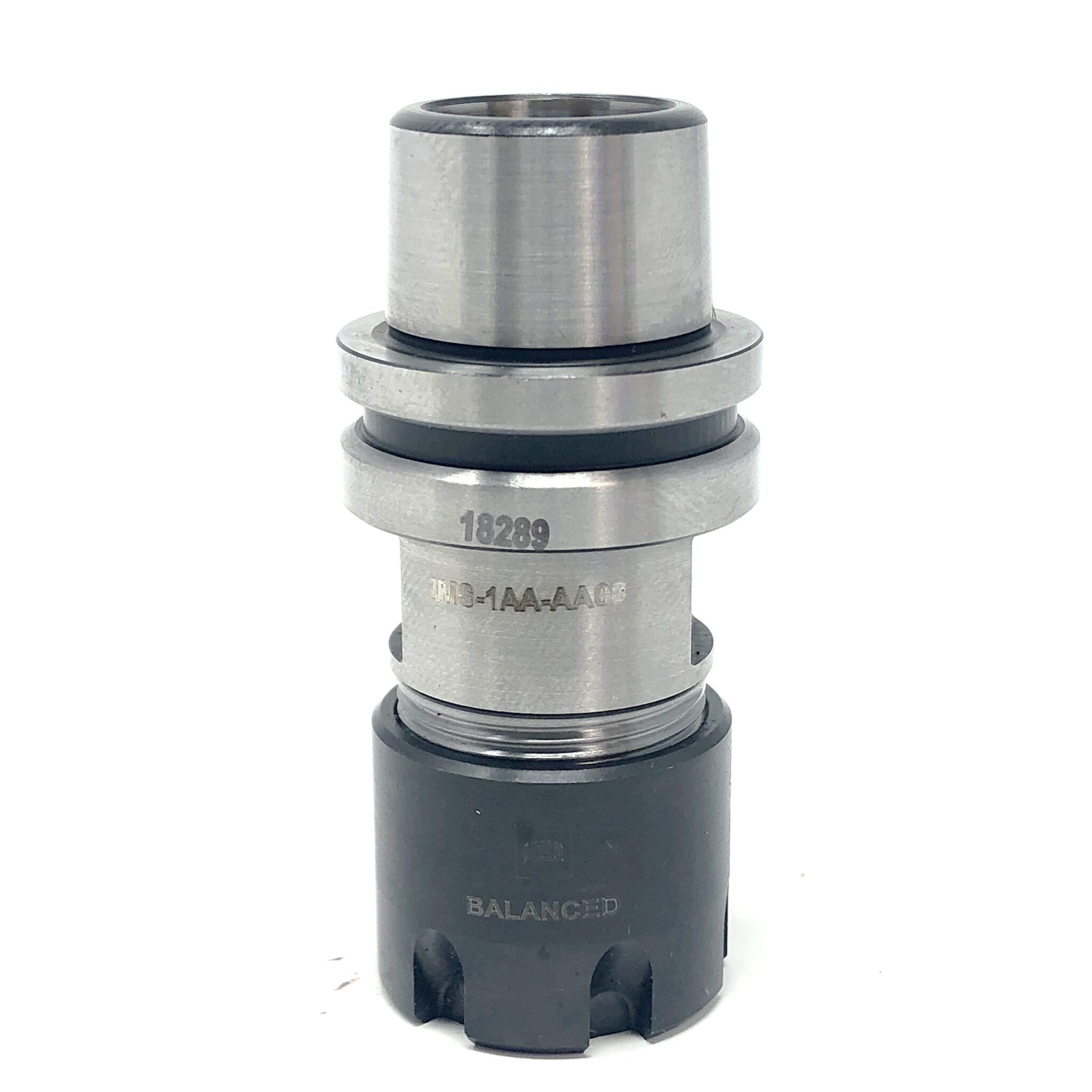

HSK 25E ER16 Tool Holder P/N H5-C-SB
HSK 25E Tool holder with mini-nut
G2.5 @ 40,000rpm DIN 69893
Collet Type: ER16 Capacity 1 to 10 mm
Dimensions (mm): L: 40 D: 22 L1: 35
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
$290.00
- Description
- Additional information
Description
HSK 25E Tool Holder with Nut
Tool Holder ER16 Specifications
HSK 25E Tool Holder Collet Size: ER16
Material: Through hardened alloy steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Recommended Torque: 42 ft/lbs Over 1/16″ Collet I.D. and 30 ft/lbs Under 1/16″ Collet I.D.
Balance Grade: G2.5 @ 40,000 rpm
Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.
Compatibility: All HSK 25E spindles up to 40,000 rpm.
Dimensions (mm): L: 40 D: 22 L1 = 35
Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.
HSK World: HSK Links
Additional information
| Weight | .1 kg |
|---|---|
| Dimensions | 3 × 3 × 6 cm |
