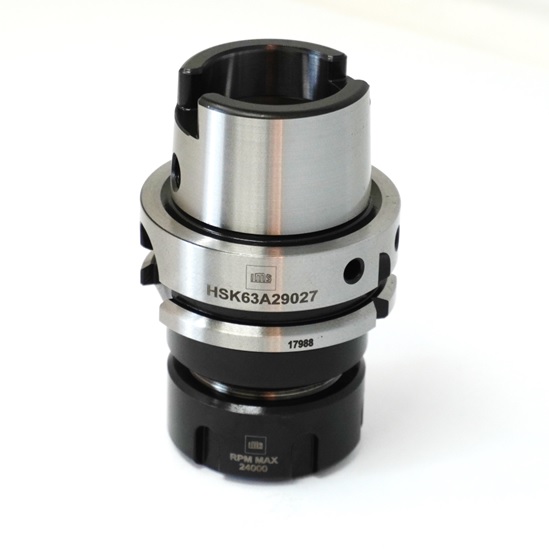

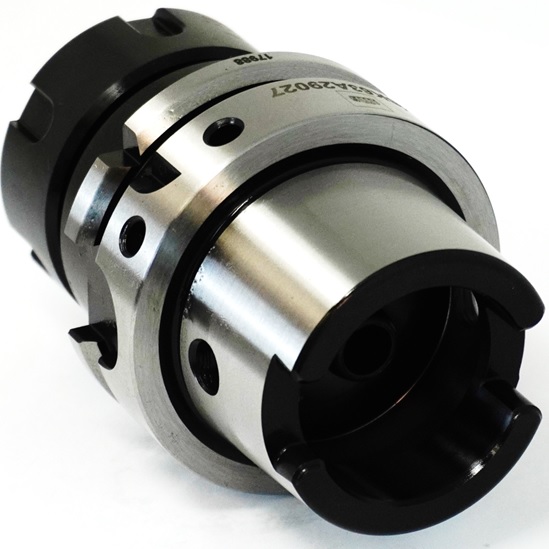

HSK 63A ER32 Short Style Tool Holder P/N H25-F-S
HSK 63A Tool holder with nut
DIN 69893
Collet Type: ER32 Capacity 1 to 20 mm
Dimensions (mm): L: 72.5 L1: 60 D: 50
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
$157.00
- Description
- Additional information
Description
HSK 63A Tool holder, ER32
P/N H25-F-S Specifications:

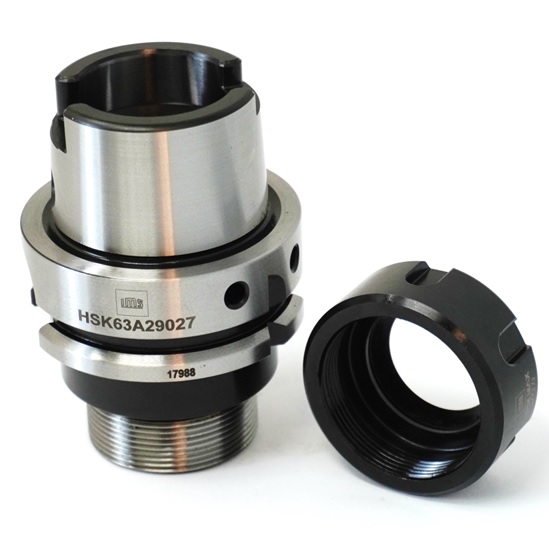

HSK 63A Tool Holder Collet Size: ER32 ,Comes with Balanced Nut
Material: Through hardened alloy steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Recommended Torque: 100 ft/lbs
Balance Grade: G2.5 @ 24,000 rpm
Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.
Compatibility: All HSK 63A spindles. P/N H25-F-S.
Dimensions (mm): L: 72.5 L1: 60 D: 50
Equivalent to IMS P/N 1AK-AA14
Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.
HSK World: HSK Links
Additional information
| Weight | 1.25 kg |
|---|---|
| Dimensions | 15 × 8 × 8 cm |
