Orbital H

Bi-Rotary Unit

Liquid Cooled, Short Nose

27 hp, 309 Pounds, 24,000 RPM

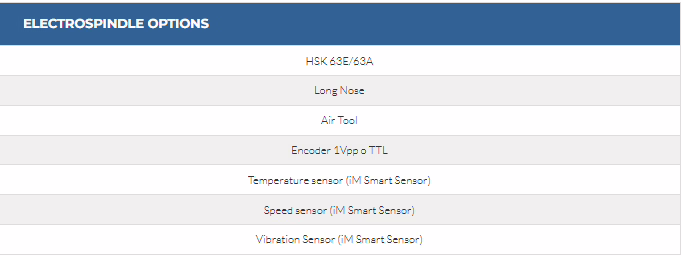

Additional Options:

Long Nose, Encoder

Speed Monitoring, Vibration Sensor

Bearings Temperature Monitoring

Orbital H Series by Hiteco

Multiple Order Discounts Available

Call (714) 307-2332 or send inquiries to: sales@hsspindles.com

Bi-Rotary Unit

Orbital H Series by Hiteco

The Orbital H spindle is a very high quality spindle made in Italy. Rugged design, built to last. This spindle is built to last for many years. We have repaired many brands of spindles through out the years and can say with certainty that you will not find a better spindle for the cost.

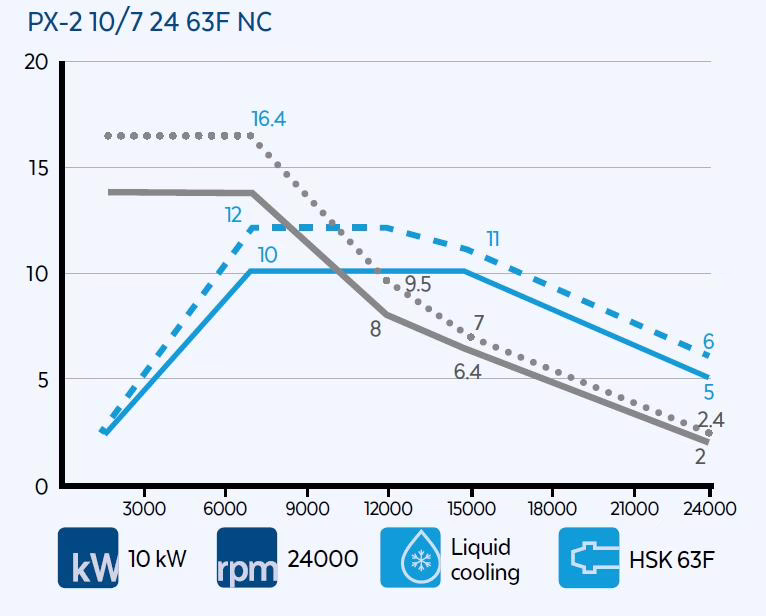

Maximum Speed: 24,000 rpm

Horsepower: 27 hp

Cooling Method: Liquid Cooling

Country of Origin: Italy

Download the Orbital H Specifications: link

Complete Catalog here: link

Weight: 309 lbs

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.

HSK World: HSK Links

Paypal financing available if approved by Paypal. Interest free if paid off in 6 months.
