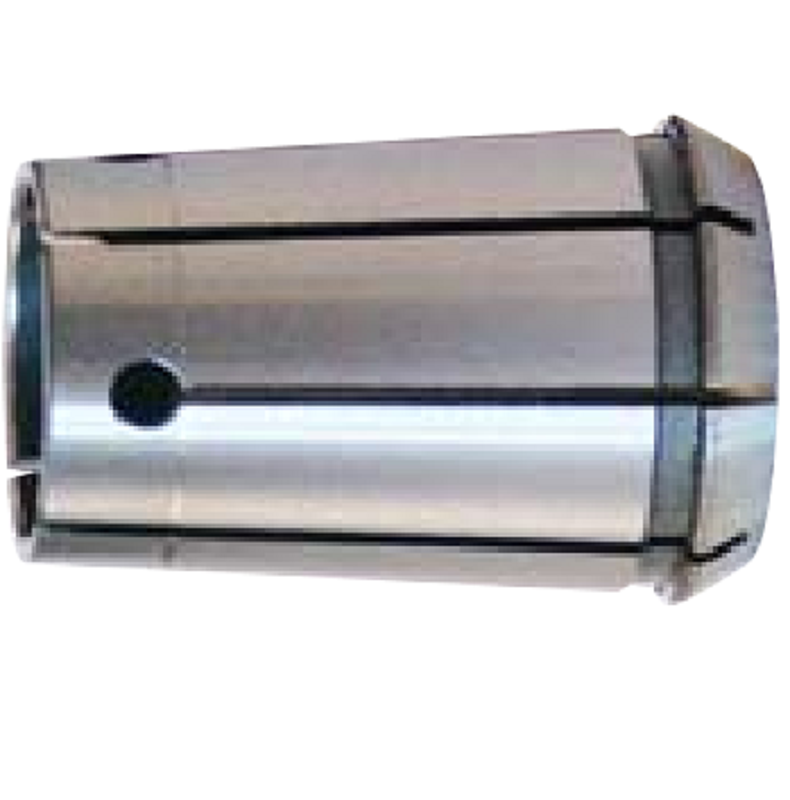

ORT 20 Collet

ORT 20 Collet P/N ORT2013

13mm Collet. DIN 6388/A

Range 13 to 12mm

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$28.00

ORT 20 Collet ORT2013

Specifications:

Collet for Metric Size: 13mm

Collapsing Range: 13mm +0.000 / -1.000 (Tool Shank Size: 13 to 12mm)

Collet Type: ORT 20 Collet, DIN 6388/A

Material: Through hardened alloy spring steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Run Out: Precision ground surfaces for accurate fit and low run-out. 0.0004″ T.I.R. Suitable for wood working.

Maintenance: Protect from rust with rust preventative spray. Remove preventative before placing into service. Use correct concentration of coolant to prevent corrosion. Always check collets for scoring or wear. Replace if worn or damaged.

Compatibility: Can be used with all ORT 20 toolholders.

Dimensions: D = 29.8mm     d = 13mm     L = 45mm

Weight 0.05 lbs
Dimensions 1.17 × 1.17 × 1.56 in
