SYOZ 25 Collet, DIN 6388A, Perske Style, 3mm, P/N ORT2503
3mm Collet. DIN 6388/A
Range 3 to 2mm
Perske, SYOZ Style
Call for back order status or multiple order discount.
1-714-307-2332
or send inquiries to engineering@hsspindles.com
$24.29 $21.86

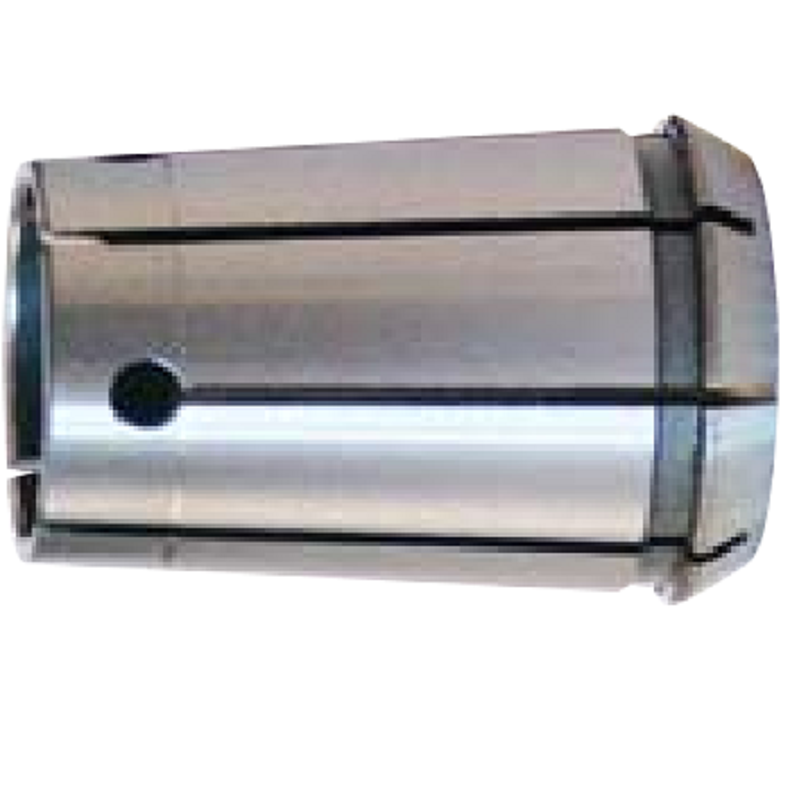

SYOZ 25 Collet
ORT Collet Specifications
SYOZ 25 Collet for Metric Size: 3mm
Collapsing Range: 3mm +0.000 / -1.000 (Tool Shank Size: 3 to 2mm)
Collet Type: SYOZ 25 Collet, ORT 25 Spring Collet, DIN 6388/A, Perske Style
Material: Through hardened alloy spring steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Recommended Torque: 90 ft/lbs
Run Out: Precision ground surfaces for accurate fit and low run-out. 0.0004″ T.I.R. Suitable for wood working.
Maintenance: Protect from rust with rust preventative spray. Remove preventative before placing into service. Use correct concentration of coolant to prevent corrosion. Always check collets for scoring or wear. Replace if worn or damaged.
Compatibility: Can be used with all ORT 25 toolholders. Most commonly found in Perske spindles.
Dimensions: D = 35.5mm d = 3mm L = 52mm
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 1.17 × 1.17 × 1.56 in |
