Spindle Comparison: 70C vs IMT ECO80 Model

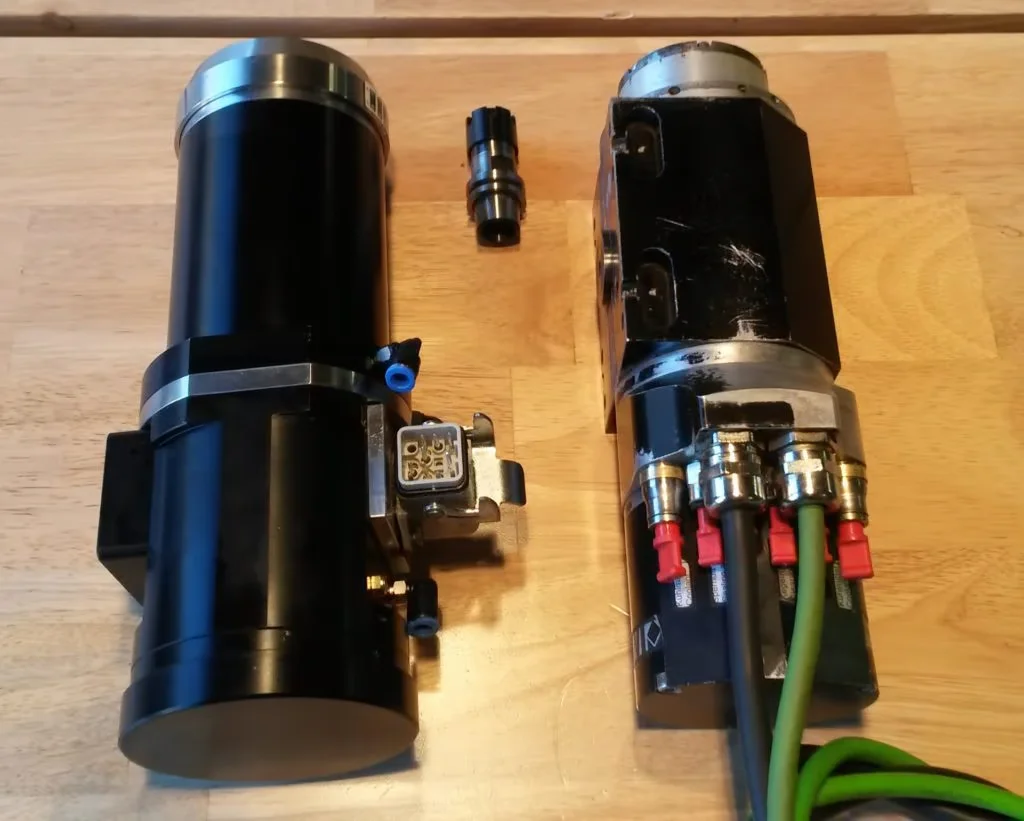

70C spindle vs IMT ECO80 spindle comparison between two high-precision HSK 25E spindles. Both models operate at high speeds of 30,000 RPM and above. The 70C is manufactured in the USA, while the IMT ECO80 spindle comes from Germany, offering two different engineering approaches to high-performance machining.

Features:

70C is designed to fit in the same envelope as an IMT ECo80 spindle, and in this post, I will highlight some of the features of the 70C.

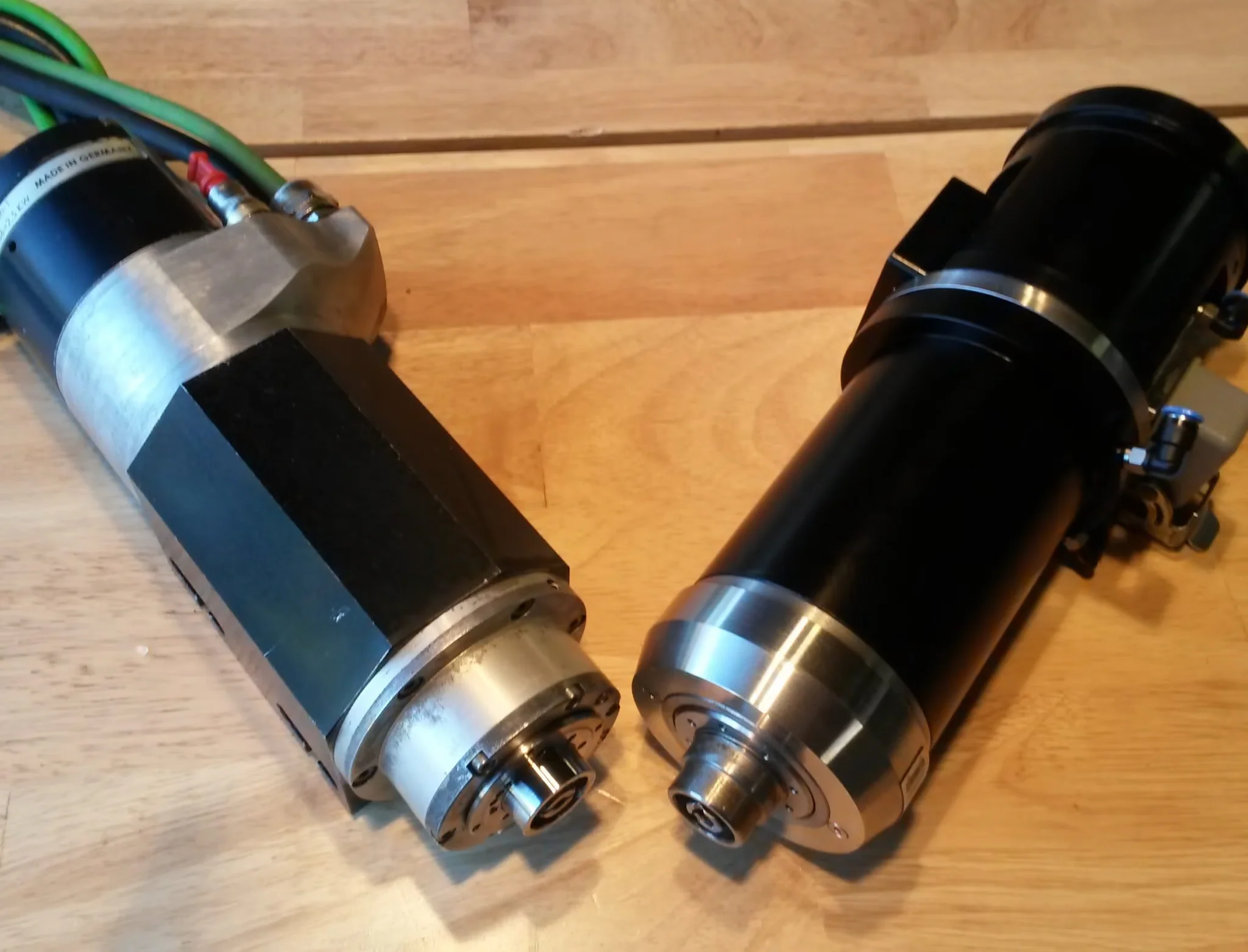

The 70C has a similarly sized shaft to allow the same access as the IMT model. The 70C has a 316 stainless steel cover to further protect the spindle from splashing.

70C also has a splash guard in the rear.

Specs:

70C is a 2.7kW motor compared to the IMT’s 1.9kW (To be fair, IMT does offer a 2.8kW version. HS Spindles does as well, but it is a 4-pole motor with much higher torque).

The 70C uses larger bearings in the front and is a more robust design throughout.

The 70C uses a stronger drawbar than the IMT and allows for commercially available clamp groups to be used (Bellodi, OTT Jakob, IMS).

70C is capable of 40,000 rpm, versus this IMT model, rated at 30,000 rpm.

The 70c is made in the United States, and the IMT is made in Germany.

You can also review this CNC spindle guide for more information on spindle fundamentals.
