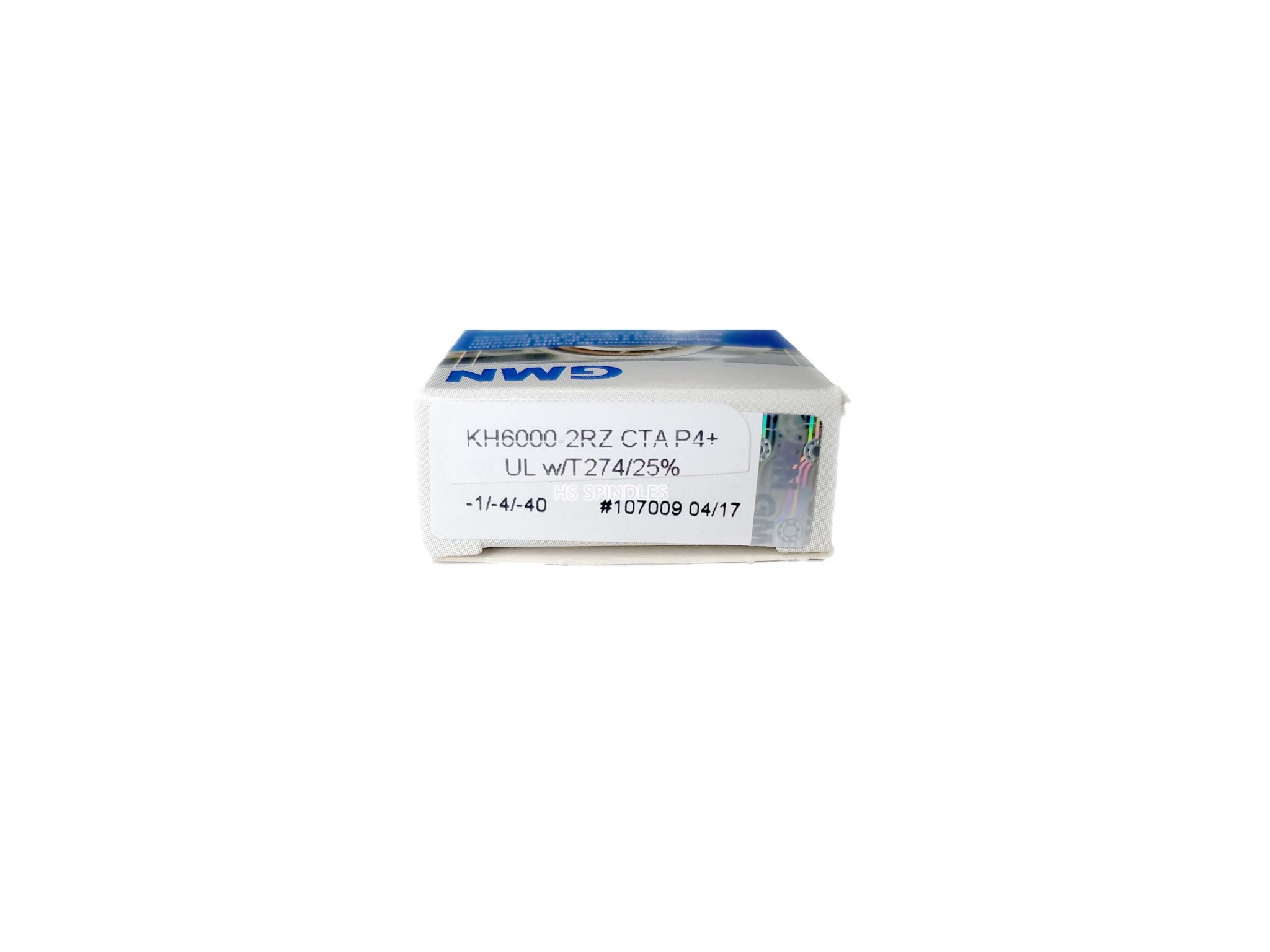

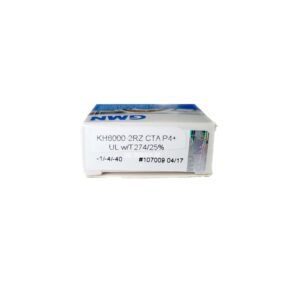

10mm Angular Contact Bearing, P/N KH6000CTA-PR

10mm Angular Contact Bearing, P/N KH6000CTA-PR

10mm Angular Contact Bearing, 17°

Quantity: One pair

Part Number: KH6000CTA-PR

Bearing Size: 6000   10mm ID x 26mm OD x 8mm W

Sealed

Steel Balls Vacuum degassed chrome steel 100 Cr 6

$210.45

SKU: KH6000CTA-PR Category:
  • Description
  • Additional information

Description

10mm Angular Contact Bearing,  P/N KH6000CTA-PR

Quantity: One pair

Dimensions: 10mm ID x 26mm OD x 8mm Width

These bearings are new and have not been opened from the factory. These bearings are commonly used in spindles and are designed for high speed operation. They come greased (20 ~25% fill) and never require maintenance. Instructions for proper configuration installation are included. Please note: We do not offer refunds or warranty the bearings. Bearings are susceptible to failure for mishandling, contamination, dropping, improper cylindrical fits and misalignment of mating components. GMN bearigns are made in Germany and are comparable in quality and precision to any bearing manufacturer. We consider them one of the top companies in the world in regards to bearing quality. If you need assistance call our technical support (714-307-2332). All bearings require a break in procedure.

The KH series use a “small ball” compared to the SM series. They handle less load but have a higher speed rating. The KH bearings are sealed. These can be used with oil lubricating or mist systems, but the seals need to be removed.

Manufacturer: GMN (link to GMN Home Page)      Link to GMN’s Product Data: KH6000CTA

Bearing Grade: ABEC 7  DIN P4   ISO Class 4                  Pre-Load: UL – ultra light

Ball Material: Vacuum degassed chrome steel 100Cr 6    Race material: 100 Cr 6 equivalent to SAE 52100, Operating temperature 150°C. (High Nitrogen Steel available, call for details).

Cage Material: “TA” Textile reinforced phenolic resin, 120°C operating temperature. (“TXM” versions available with 250°C operating temperature, call for details).



Bearing Specs

Bearing Dimensions

Bore Diameterd [mm]10
Outer DiameterD[mm]26
Single Bearing WidthB [mm]8
Ball DiameterDw [mm]3.17



Bearing Load Ratings

Dynamic Radial Load RatingC [N]2,020
Static Radial Load Rating – Steel BallsC0 [N]780
Static Radial Load Rating – Si3N4 BallsC0 HY [N]550



Bearing RPM Ratings

Speed Value – Oil Lube (Spring Pre-Loaded)noil [1/min]125,000
Speed Value – Grease Lube (Spring Pre-Loaded)ngrease [1/min]94,000



Geometrical Data

Number of BallsZ [Qty]11
Contact Anglea0 [°]17
Bearing Weightm [kg]0.018



Bearing Preload Data

Minimum Spring Pre-LoadFf [N]75



Disclaimer: All sales of bearing product purchases are final. We do not accept returns or exchanges of bearings.
