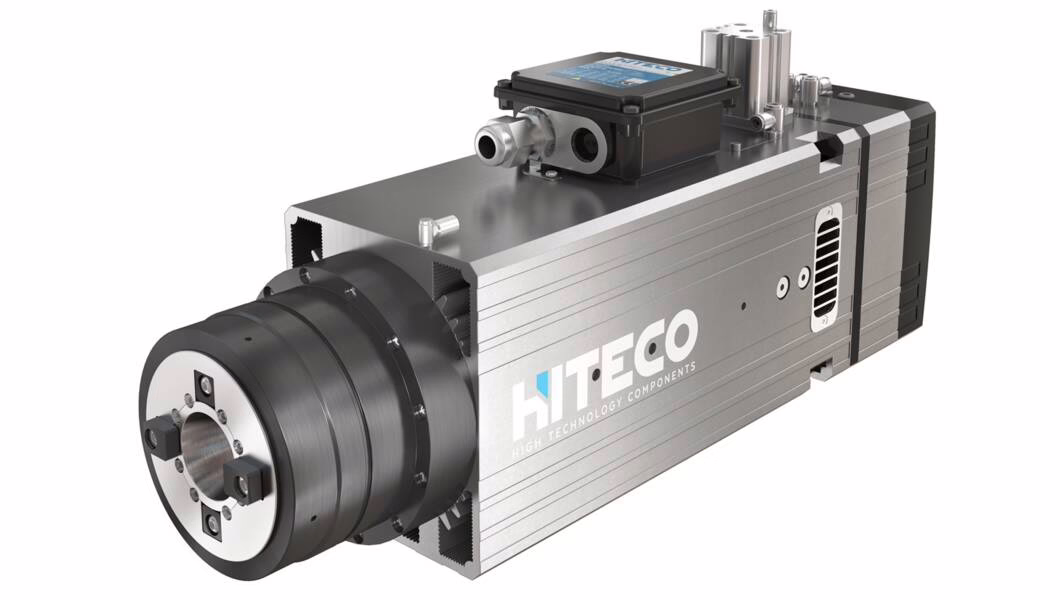

GXM-115 I40

Electrospindle for glass and stone processing with high-speed asynchronous motor. Ideal for milling, drilling, cutting out, polishing, bevelling and engraving. Compact design to be installed on CNC machines with vertical plane (drills), horizontal and robots.

• Tools holder available: BT40 and ISO40 Hiteco
• Max speed 12000 RPM. With ceramic ball bearings option 15000 RPM
• Air cooling
• Tool holder doesn’t need drive keys for an easy manage of the tool changer
• Main components in INOX steel
• Hiteco rotating water joint for tools cooling
• Sleeve tool cooling
• Integrated 1Vpp or TTL encoder (opt.)
• Joint Monitoring Sensor (opt.)
