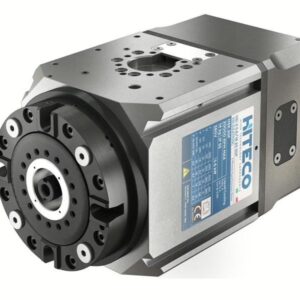

HD Series
- Suitable for machining aluminium and composite materials
- Optimal layout for bi-rotation heads at 90°
- Reduced dimensions and weight to ensure utmost versatility
- Ceramic bearings that ensure the long life of the electrospindle
ADVANTAGES
- COMPACT DESIGN

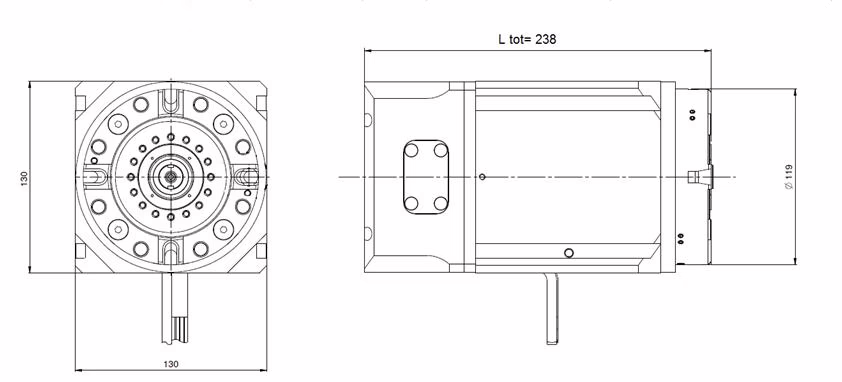

High power levels in only 238 mm

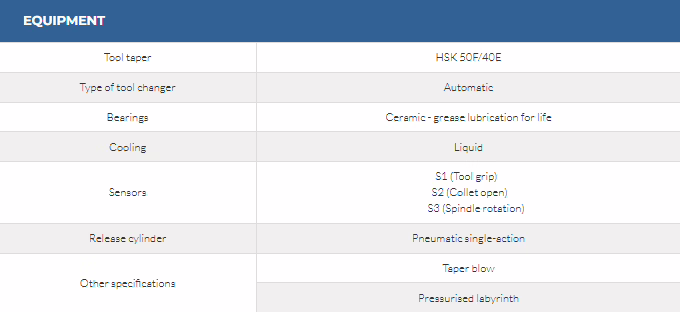

- EXTENSIVE STANDARD EQUIPMENT
Anti-rotation system of the aggregates integrated in the electrospindle nose and tool lubrication with two separate circuits
- MULTIPLE TOOL TAPERS
Available with HSK 50F and HSK 40E tool taper
- CONFIGURABILITY
Encoder 1Vpp or TTL available without any change to the layout of the electrospindle
