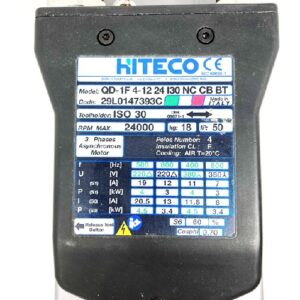

Hiteco Spindle QD-1F, 29L0147393C

ATC Spindle

ISO 30

Air Cooled

ABEC 7 Bearings

Ceramic balls in front and rear

4.0kW (5.4 HP)  24,000 RPM

4 Pole Motor

Call for back order status or multiple order discount.

1-714-307-2332

or send inquiries to engineering@hsspindles.com

Availability: 2 in stock

$3,700.00

Availability: 2 in stock

Hiteco Spindle, Dual Voltage

This spindle is completely refurbished. It has new bearings with ceramic balls. It is rated at 24,000 rpm. Made in Italy. Comes with a one year warranty.

Clamp Group: ISO 30

Model: QD-1F

Mounting: M8 threads

ISO 30 Specs: Maximum collet size is ER40. The maximum tool shank is 30mm or 1.1875″.

Maximum Speed: 24,000 rpm

Run-out: <.0002″

S1 Horsepower: 5.4 hp   (4.0 kW)

S6 Horsepower: 6.0 hp   (4.5 kW)

Voltage: 380V or 220V. 4 Pole motor.

Cooling Method: Fan (24 VDC)

Country of Origin: Italy

Weight: 18 kg





Weight 77 lbs
Dimensions 10.92 × 5.85 × 5.85 in
