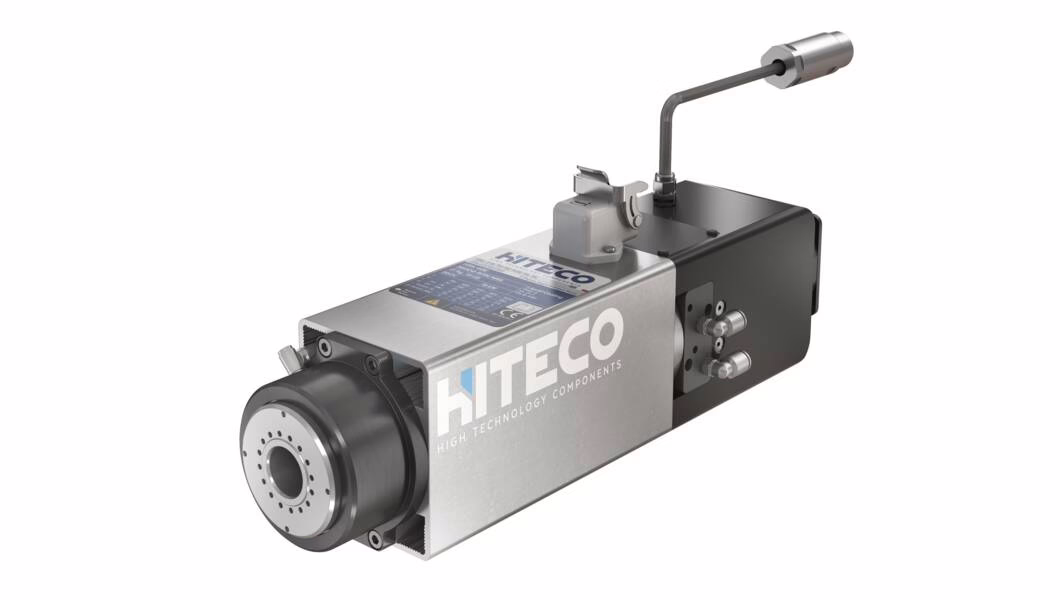

HS -1F 1.7/24 30 25E
Hiteco’s Speedtech series ATC electrospindles are ideal for high-speed processing on wood, plastic, advanced materials and integration on robotic arms. Speedtech spindles are ideal for making signs, eyewear, consumer electronics components and fashion hardware.
- Tool holder availables: HSK25E and ISO20
- iM Smart Sensor available as optional
ADVANTAGES
- Only 9 Kg weight which allows installations on robot and light cnc
- Front and back ceramic ball bearings allow low operating temperature and a higher number of operating hours
- The design of the nose allows to reduce the center to center distance to 50 mm: the number of tools can increase with the same tool holder rack length
- Fast connection: all sensors are connected with a single circular connector and with a single power connector
