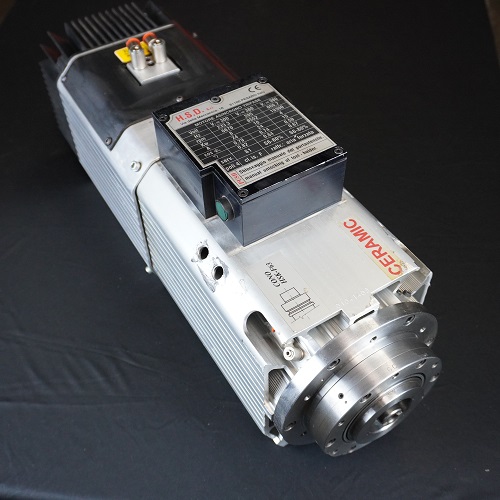

Refurbished HSD Spindle, 10.00 kW

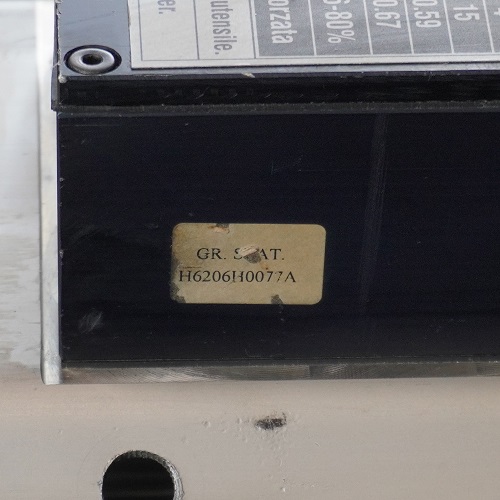

HSD Spindle, 10kW, H6206H077A

ATC Spindle

HSK 63F

Air Cooled

ABEC 7 Bearings

Ceramic balls in front and rear

S1 10.00 kW (12 HP)  20,000 RPM

4 Pole Motor

Two year warranty is available on bearings ($600 extra).



1-714-307-2332

or send inquiries to sales@hsspindles.com

Availability: 1 in stock

$10,700.00

Availability: 1 in stock

HSD Spindle, Short Nose, 10.00 kW, 380V

This spindle is completely refurbished. It has new bearings with ceramic balls.  It is rated at 20,000 rpm. This is an authentic HSD motor not a knock-off. Comes with a one year warranty. Two year warranty is available on bearings ($600 extra).

Clamp Group: HSK 63F

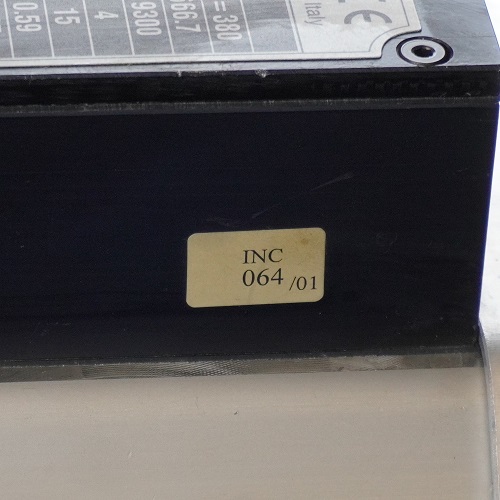

Model: INC 064/01       similar to ES 988A (Old Style)

Mounting: T-Slots

HSK 63F Specs: Maximum collet size is ER40. The maximum tool shank is 30mm or 1.1875″.

Maximum Speed: 20,000 rpm

Run-out: <.0002″

S1 Horsepower: 10 kW



Voltage:  380 V, 4 Pole motor.

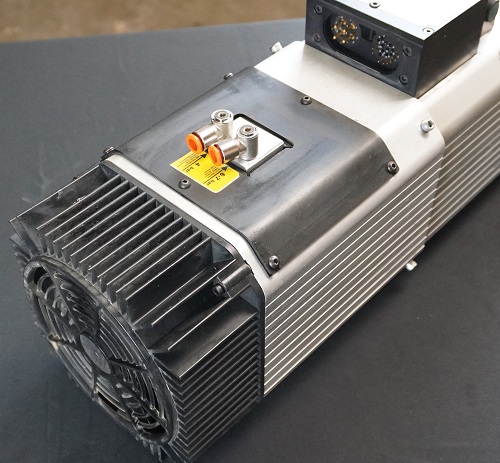

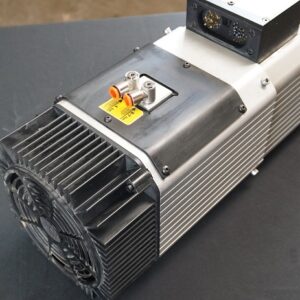

Cooling Method: Fan (230 VAC)

Country of Origin: Italy

Weight: 33 kg





Weight 72.6 lbs
Dimensions 9.36 × 4.68 × 4.68 in
