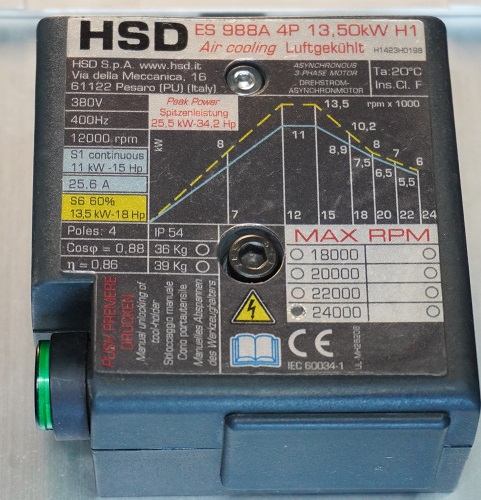

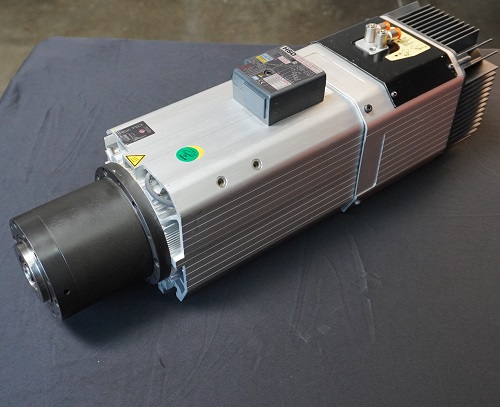

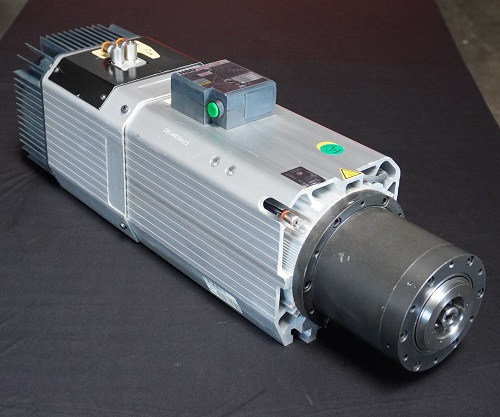

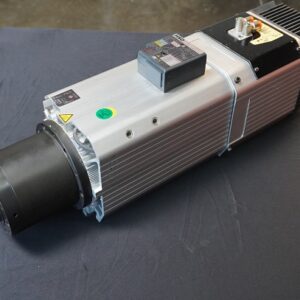

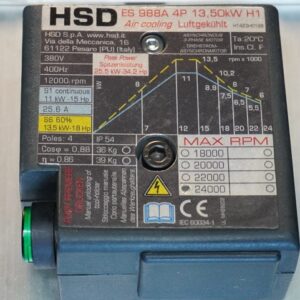

HSD Spindle, ES 988A, H1423H0198

2014 ATC Spindle

HSK 63F

Air Cooled

ABEC 7 Bearings

Ceramic balls in front and rear

S6 13.5 kW (18 HP)  24,000 RPM

4 Pole Motor

Two year warranty is available on bearings ($600 extra).



1-714-307-2332

or send inquiries to sales@hsspindles.com

Availability: 1 in stock

$10,960.00

Availability: 1 in stock

HSD Spindle, Long Nose, 13.5kW, 380V

This 2014 spindle is completely refurbished. It has new bearings with ceramic balls and new sensors.  It is rated at 24,000 rpm. This is an authentic HSD motor not a Chinese knock-off. Comes with a one year warranty. Two year warranty is available on bearings ($600 extra).

Clamp Group: HSK 63F

Model: ES 988A

Mounting: T-Slots

HSK 63F Specs: Maximum collet size is ER40. The maximum tool shank is 30mm or 1.1875″.

Maximum Speed: 24,000 rpm

Run-out: <.0002″

S1 Horsepower: 15 hp   (11 kW)

S6 Horsepower: 18 hp   (13.5 kW)

Voltage: 380V, 4 Pole motor.

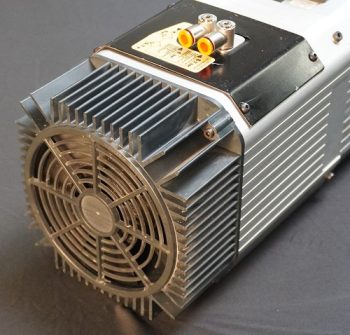

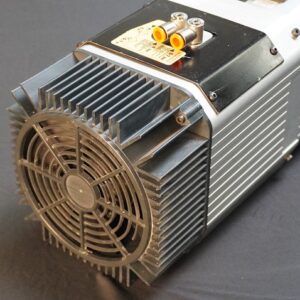

Cooling Method: Fan (230 VAC)

Country of Origin: Italy

Weight: 39 kg





Weight 85.8 lbs
Dimensions 9.36 × 4.68 × 4.68 in
