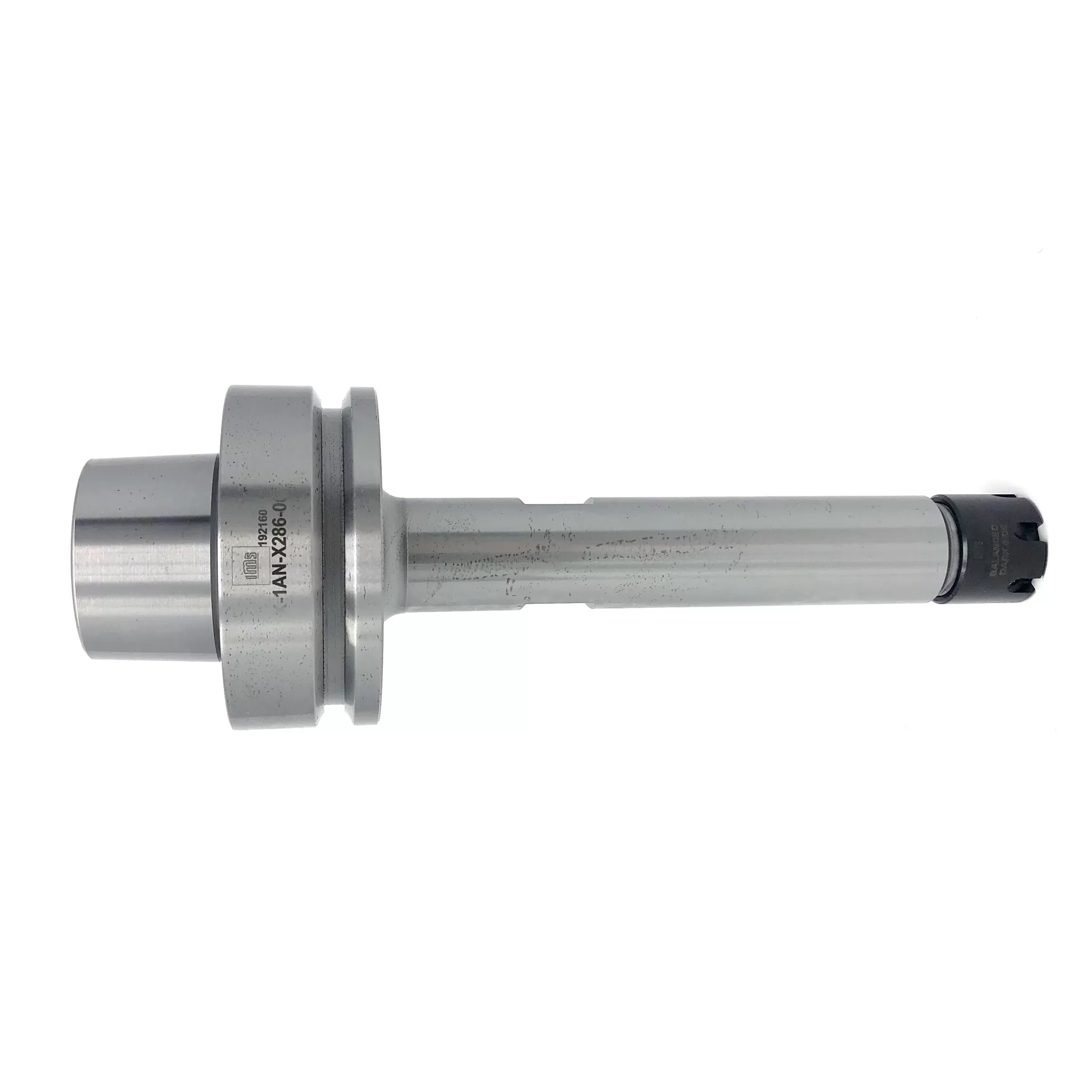

HSK 63F ER16 Extra Long Style Tool Holder

P/N H30-C-XL

Comes with mini-nut

DIN 69893

Collet Type: ER16    Capacity 1 to 10 mm

Dimensions (mm): L: 160   L1: 150   D: 22

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$325.00

SKU: H30-C-XL Category:
  • Description
  • Additional information

Description

HSK 63F ER16 Extra Long Style Tool Holder P/N H30-C-XL

HSK 63F ER16 Extra Long for longer reach than a standard size tool holder. Using a longer tool holder reduces the flexing and resulting vibration from a longer tool. Also, the ability to use a shorter tool in a longer tool holder makes for a more rigid set up which produces a better surface finish.

HSK 63F ER16 Extra Long Style Specifications:

Collet Size: ER16 (comes with Mini-Nut)

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 42 ft/lbs Over  1/16″ Collet I.D.  and 30 ft/lbs Under 1/16″ Collet I.D.

Balance Grade: G2.5 @ 24,000 rpm

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

Compatibility: All HSK 63F spindles.

Dimensions (mm): L: 160    L1: 150     D: 22

Equivalent to: IMS P/N WF202-L160 or 1AN-X286. The “A” number is the current part number.

We are a distibutor for IMS and there are many items available that are not displayed on the website. IMS has a large selection of tool holders and accessories. Open the catalog here: link



Improve your efficiency with these items:

A tool tightening stand and torque wrench make switching out tools much easier. The stand uses cylindrical rollers that grab the tool holder without marring it and the torque wrench has a high and low setting. This provides consistency in clamping force for better repeatability.

Torque Wrench: Part Number AAE32 – link coming soon

Tool Tightening Stand: link

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.

HSK World: HSK Links
