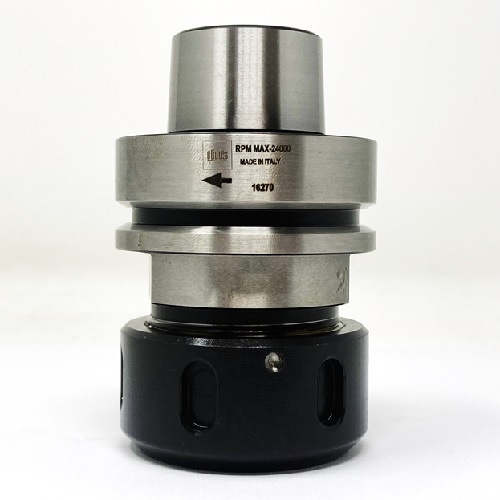

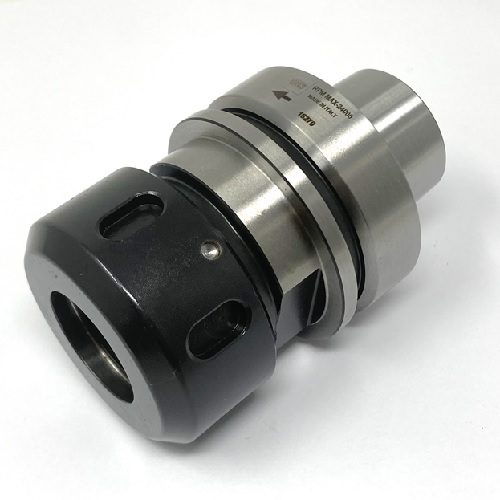

HSK 63F SYOZ25 Short Style P/N H30-K-S
HSK 63F SYOZ25 Short Style P/N H30-K-S

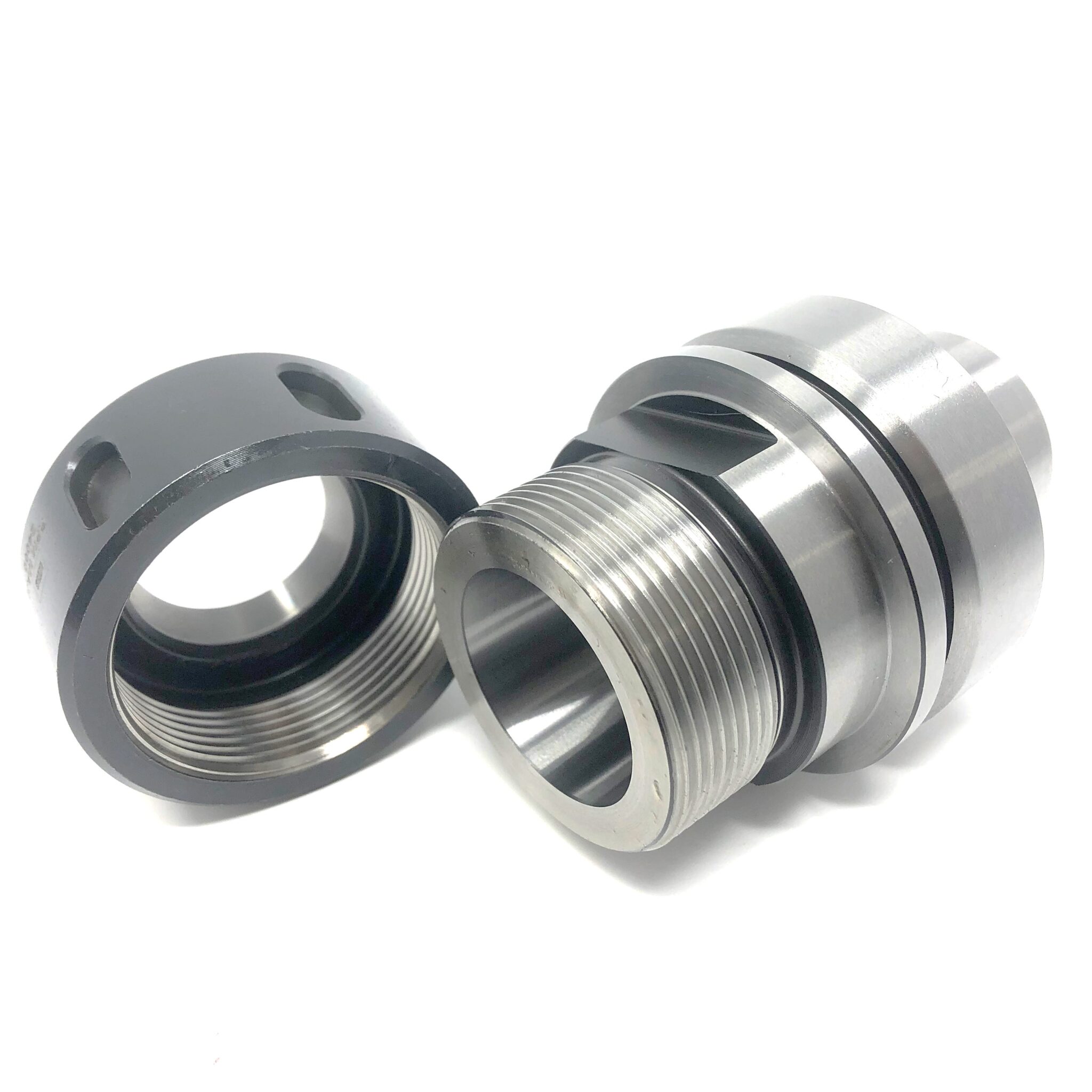

With ball bearing nut
DIN 69893
Collet Type: SYOZ25 or ORT25 Capacity 3 to 35 mm
Dimensions (mm): L: 76.5 L1: 60 D: 63
Andi-Omnitech, CR Onsrud, Holzer, Homag, Norwood, Stiles, Weeke machines.
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
$165.00
- Description
- Additional information
Description
HSK 63F SYOZ25 Short Style P/N H30-K-S Specifications
HSK 63F SYOZ25 Short Style, also known as ORT25
Material: Through hardened alloy steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Recommended Torque: 90 ft/lbs
Balance Grade: G2.5 @ 24,000 rpm
Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.
Compatibility: All HSK 63F spindles. Common in Anderson, Andi-Omnitech, CR Onsrud, Holzer, Homag, Norwood, Stiles, Weeke machines.
Dimensions (mm): L: 76.5 L1: 60 D: 63
Equivalent to IMS P/N WF226
Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.
HSK World: HSK Links
We are a distributor for IMS products.
Equivalent to IMS product part number WF226. IMS recently switched to a new part numbering system and the “A” number is the current part number.
Additional information
| Weight | 1.25 kg |
|---|---|
| Dimensions | 15 × 8 × 8 cm |
