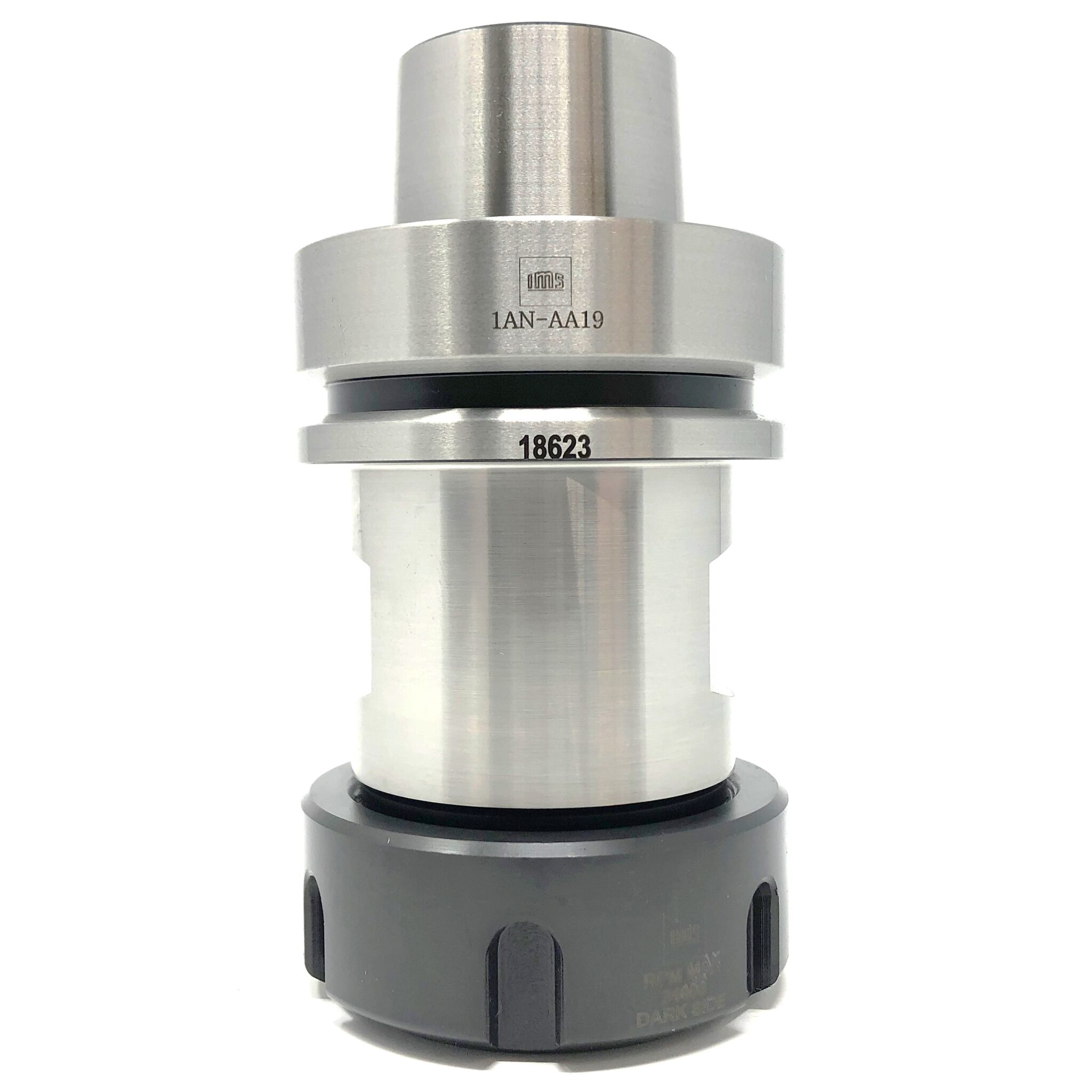

HSK 63F ER40 Long Style Tool Holder P/N H30-G-L

HSK 63F ER40 Long Style Tool Holder P/N H30-G-L

DIN 69893

Collet Type: ER40    Capacity 3 to 30 mm

Dimensions (mm): L: 100   L1: 83.5   D: 63

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com


SKU: H30-G-L Category:
  • Description
  • Additional information


HSK 63F ER40 Long Style Tool Holder P/N H30-G-L

HSK 63F ER40 Long Style Specifications:

Collet Size: ER40

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 133 ft/lbs

Balance Grade: G2.5 @ 24,000 rpm

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

Compatibility: All HSK 63F spindles

Dimensions (mm): L: 100    L1: 83.5     D: 63

Equivalent: IMS product part number WF222-100 or 1AN-AA19. The “A” number is the current part number.

We are a distibutor for IMS and there are many items available that are not displayed on the website. IMS has a large selection of tool holders and accessories. Open the catalog here: link

Overstock item: ER40 3/4″ Collet

Improve your efficiency with these items:

A tool tightening stand and torque wrench make switching out tools much easier. The stand uses cylindrical rollers that grab the tool holder without marring it and the torque wrench has a high and low setting. This provides consistency in clamping force for better repeatability.

Torque Wrench: link

Tool Tightening Stand: link

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.

Additional information

Weight1.5 kg
Dimensions20 × 8 × 8 cm
