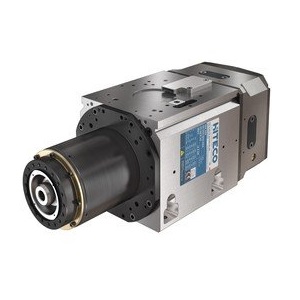

HT-2 25/10 24 63A NL ES
HSK 63A Spindle
Liquid Cooled, 34hp, 380V, 4P, 93 Pounds
Ceramic Ball Bearings, 24,000 RPM
Inverter Supply, Circular Male Connector
Labyrinth With Air Seal, Single Effect Pneumatic Cylinder
Long Nose, Encoder 1 Vpp, Sensors S1, S2, S3
Additional Options:
Bearings Temperature Monitor, Sensor S5
Oil Mist/MQL, Air Tool
Part Number: HT-2 25-10 24 63A NL ES
Multiple Order Discounts Available
Call (714) 307-2332 or send inquiries to: sales@hsspindles.com
- Description
Description
HSK 63A Spindle
Part Number: HT-2 25/10 24 63A NL ES
Code: 29L0502619D
The HT-2 25/10 24 63A NL ES spindle is a very high quality spindle made in Italy. Rugged design, built to last. This spindle is built to last for many years. We have repaired many brands of spindles through out the years and can say with certainty that you will not find a better spindle for the price.
Maximum Speed: 24,000 rpm
Horsepower: 34 hp
Cooling Method: Liquid by Heat Exchanger Air Cooling
Country of Origin: Italy
HT-2 25-10 24 63A NL ES Layout: link
HT-2 25-10 24 63A NL ES Specifications: link
Complete Robotech Catalog here: link
Weight: 93 lbs
Paypal financing available if approved by Paypal. Interest free if paid off in 6 months.
