Mini-nut, ER20, P/N MN-D
Type: ER20
Thread: M24 x 1.00
Outer Diameter: 28mm
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
$28.00

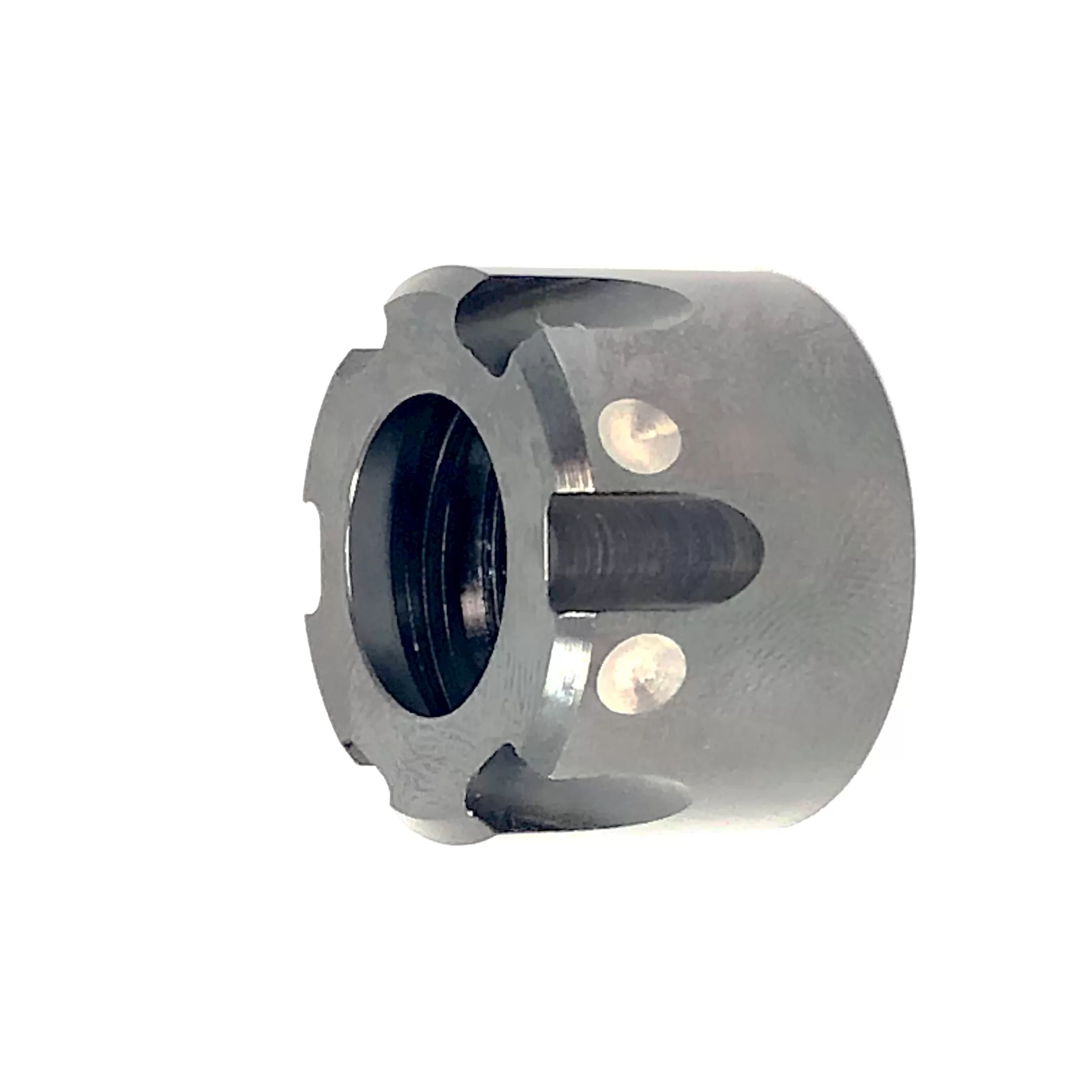

ER20 Mini-nut
ER20 Mini Nut is slotted with smaller profile compared to standard ER20 slotted nuts. The outer diameter is 28mm compared to 35mm on the standard nut. The thread is also different than the standard nut (M24 x 1.00 vs M26 x 1.50).
Outer diameter is 28mm. Use with wrench WR-DM.
ER20 Mini-nut has M24 X 1.00 Thread.
Recommended Max Torque:
1.0 mm – 12 ft/lbs
1.5 – 13 mm – 21 ft/lbs
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1.17 × 1.17 × 0.39 in |
