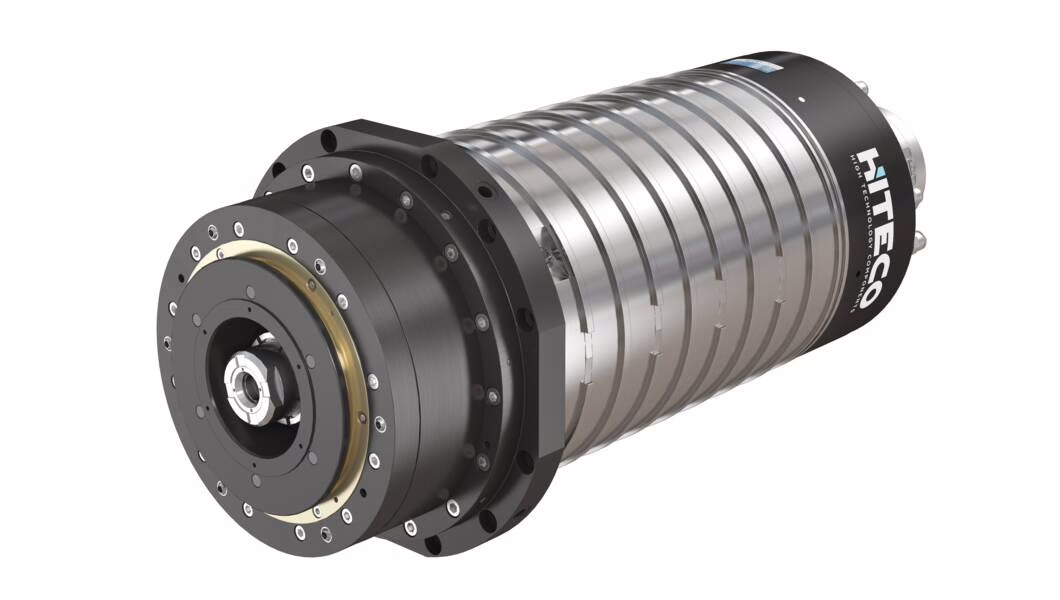

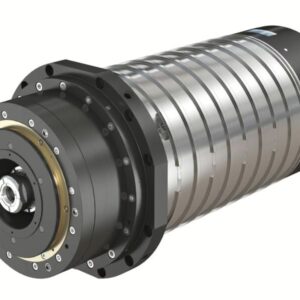

MX-2 38/3 12 100A
- High-power electrospindle for milling and drilling of stainless steel, cast iron, aluminum and metals. Compact design allows installation on cnc machine, milling heads with direct drive (torque motors) or mechanically.

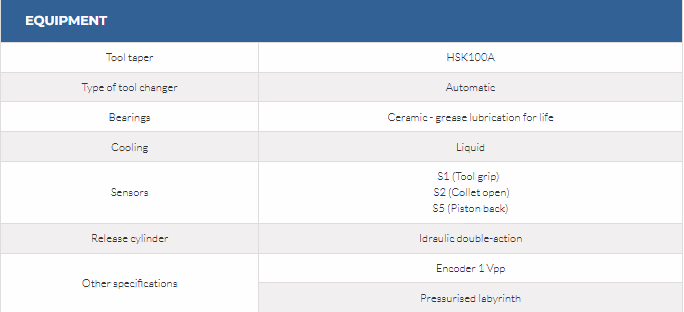

- HSK 100A tool holder with ball bearings allows to this electrospindle to carry out heavy roughing operations
- 15000 RPM max speed with ball bearings oil lubrication allows to carry out surface finishing operations
- On-board triaxial accelerometer: the sensor measures the vibrations in all directions
- It is available the axial shaft displacement sensor as optional. It is able to report to the machine the spindle nose movement during the processing, allowing the machine to correct the tool positioning
ADVANTAGES
- The spindle is equipped with a rotary joint that allows to cool the tool during the processing through the flow of refrigerant fluid through the shaft (CTS) or through minimal air-oil lubrication (MQL)
- Around the electrospindle nose there is a tool cooling distributor enable to cool it in each machine way
- Front and back bearings are monitored from two temperature sensors able to signal abnormal operating temperatures
- Cooling circuit has been optimized to guarantee low operating temperature and the maximum cutting precision
