SYOZ 20 Collet P/N ORT2016

16mm Collet. DIN 6388/A

Range 16 to 15mm

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com


SKU: ORT2016 Category:
  • Description
  • Additional information

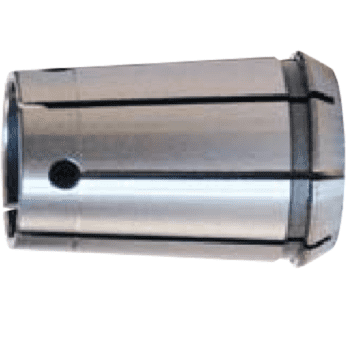

ORT 20 Collet


Collet for Metric Size: 16mm

Collapsing Range: 16mm +0.000 / -1.000 (Tool Shank Size: 16 to 15mm)

Collet Type: ORT 20 Collet, DIN 6388/A

Material: Through hardened alloy spring steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Run Out: Precision ground surfaces for accurate fit and low run-out. 0.0004″ T.I.R. Suitable for wood working.

Maintenance: Protect from rust with rust preventative spray. Remove preventative before placing into service. Use correct concentration of coolant to prevent corrosion. Always check collets for scoring or wear. Replace if worn or damaged.

Compatibility: Can be used with all ORT 20 toolholders.

Dimensions: D = 29.8mm     d = 16mm     L = 45mm

Additional information

Weight.023 kg
Dimensions3 × 3 × 4 cm
