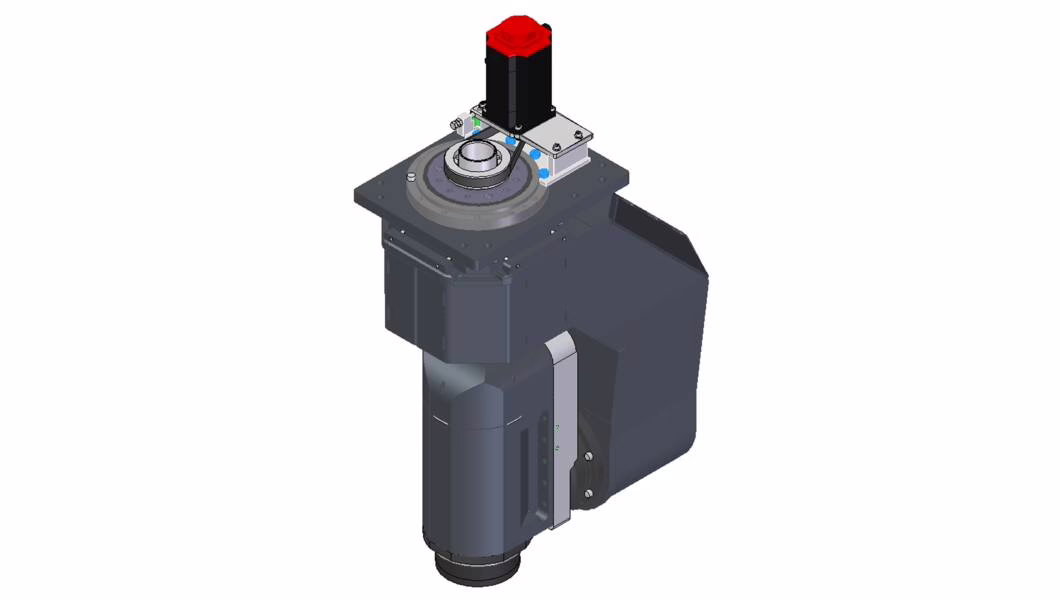

TILT CLT MX-2 60/3 12
Application: CLT (Cross Laminated Timber) Edge wall. Panel height till 400 mm.
Requirements:
• Possibility to use blades till Ø1150 mm with cover (not supplied);

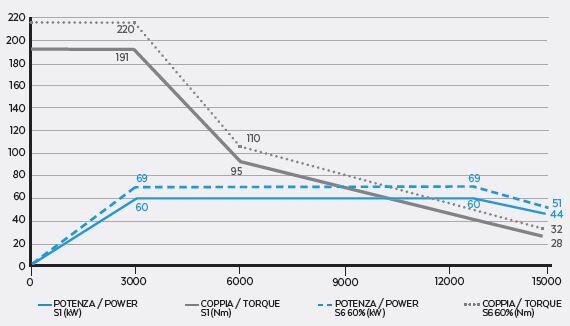

• Torque: 200 Nm c.a.
• Taper size: HSK 100A or ISO50;
Heavy gearbox: C45 and C55. The application doesn’t need high accuracy: no brake on the axis, no encoder. A-Axis servomotor with brake for safety reason. Saw chain required to make squared holes on the panel. Angular reference necessary to lubricate the chain.
ADVANTAGES
- Designed for heavy carpentry work
- Reduced rotation space for a compact machine design
