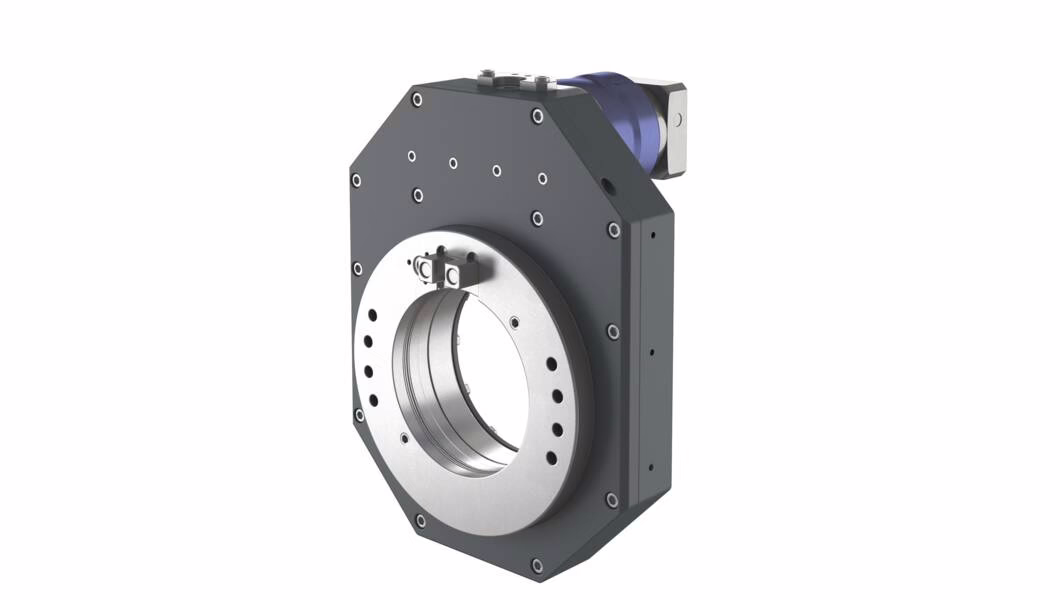

C AXIS for GXM and SGX (short and long nose) SPINDLE
C AXIS for GXM and SGX (short and long nose) SPINDLE - Image 2

C AXIS for GXM and SGX (short and long nose) SPINDLE

As standard there are 4 fixed and 8 rotating hydraulic supplies, positioned on the reference flange in order to cool directly the tool even if mounted on the aggregate.

  • Trasmission ratio: 1:200
  • Rated output speed: 20 RPM
  • Output rated torque: 200 Nm
  • Position accuracy: < 5 arcmin
  • Available for GXM and SGX spindles
Category:

ADVANTAGES

  • Endless rotation: no limits to the work cycle
  • High water pressure: up to 3,5 bar
  • Aggregate angle reference easily replaceable
  • Can be used with various brands of servomotors, both with absolute and incremental encoder (the zeroing sensor is already built in)
