GX-40 I40

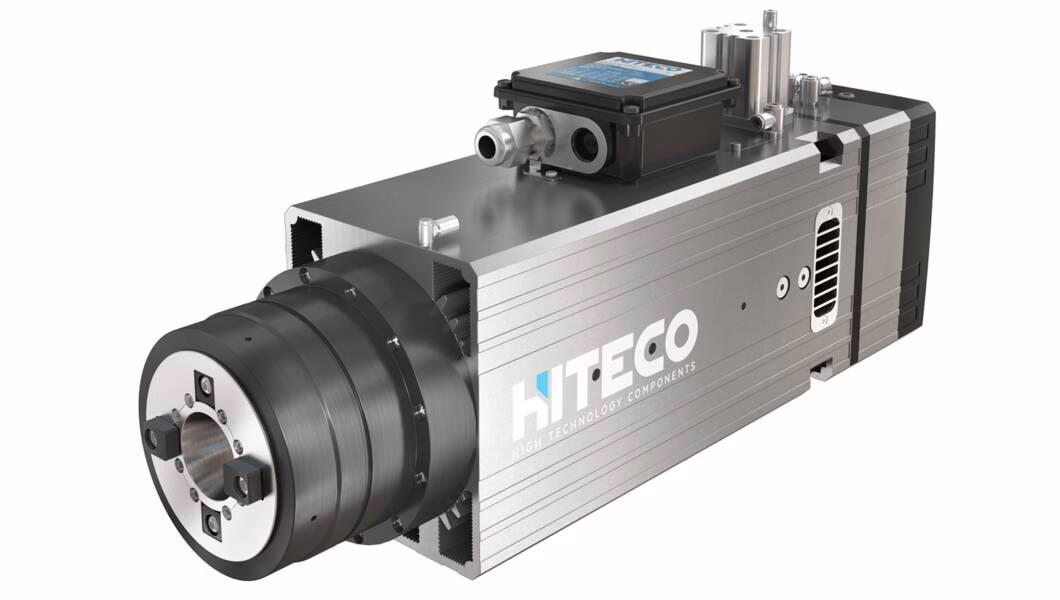

Electrospindle for glass processing with high-speed asynchronous motor. Ideal for drilling, polishing, cutting out, bevelling and engraving. Compact design to be installed on CNC machines with vertical plane (drills), horizontal and robots.

  • Tools holder available: ISO30, BT40 or ISO40 Hiteco
  • Max speed 12000 RPM. With ceramic ball bearings option 15000 RPM
  • Air cooling
  • Main components in INOX steel
  • Hiteco rotating water joint for tools cooling
  • Sleeve tool cooling
  • Integrated 1Vpp or TTL encoder (opt.)
  • Joint Monitoring Sensor (opt.)
Category:

ADVANTAGES

  • Hiteco rotary joint has an easy maintenance and allows dry processing
  • JMS optional sensor allows to promptly report to the machine the loss in the rotary joint
  • Monitoring of vibrations and working conditions thanks to the iM Smart Sensor available as optional
  • Front nose suitable for suction cups or tool cooling distributor
