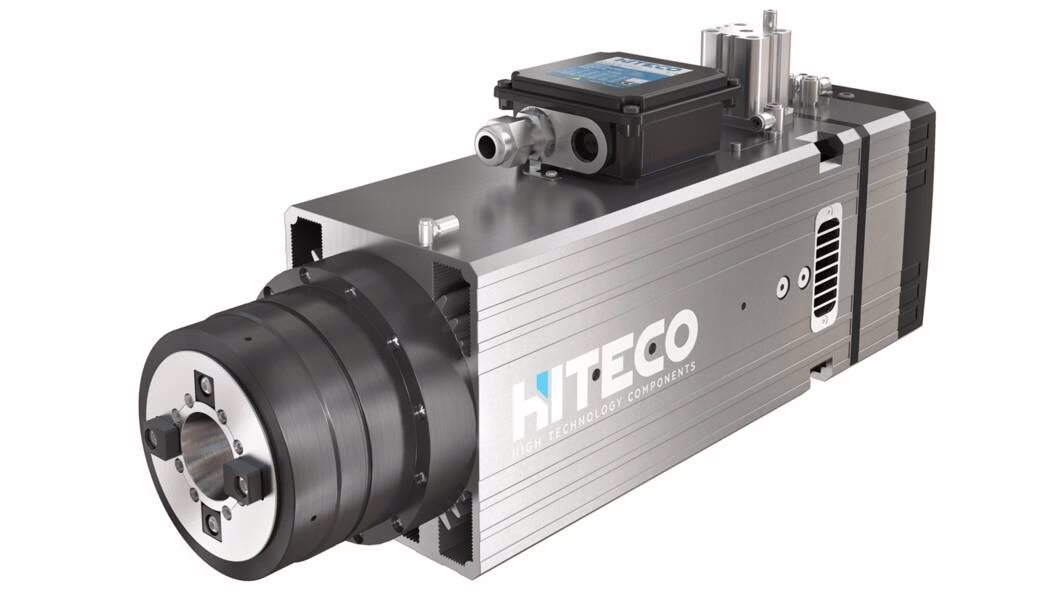

GXM-130 I40
Electrospindle for glass, stone and granite processing with high-speed asynchronous motor. Ideal for milling, drilling, cutting out, polishing and engraving. Compact design to be installed on CNC machines with vertical plane (drills), horizontal and robots.
- Tools holder available: BT40 and ISO40 Hiteco (symmetrical keys)
- Max speed 12000 RPM. With ceramic ball bearings option 15000 RPM
- Shaft index pneumatic
- Liquid cooling through heat exchanger
- Hollow shaft for water coolant by Hiteco rotary joint
- Integrated 1Vpp or TTL encoder (opt.)
- Joint Monitoring Sensor (opt.)
ADVANTAGES
- Hiteco rotary joint has an easy maintenance and allows dry processing
- JMS optional sensor allows to promptly report to the machine the loss in the rotary joint
- Monitoring of vibrations and working conditions thanks to the iM Smart Sensor available as optional
- Front nose suitable for c-axis and aggregates use or tool cooling distributor
