GXM-170 I40

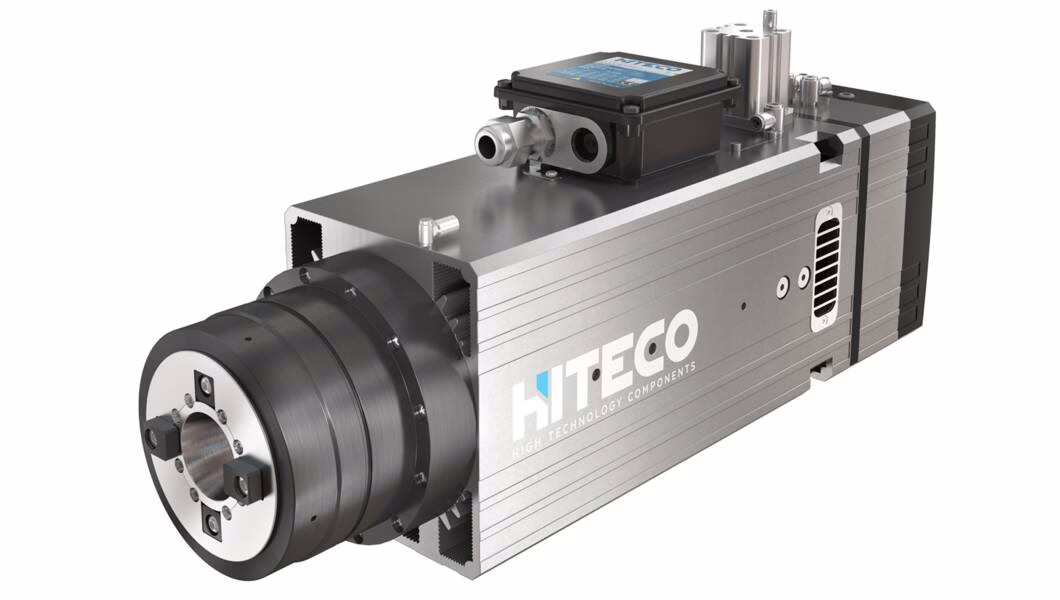

Electrospindle for glass, stone and granite processing with high-speed asynchronous motor. Ideal for milling, drilling, cutting out, polishing and engraving. Compact design to be installed on CNC machines with vertical plane (drills), horizontal and robots.

  • Tools holder available: BT40 and ISO40 Hiteco (symmetrical keys)
  • Max speed 12000 RPM. With ceramic ball bearings option 15000 RPM
  • Shaft index pneumatic
  • Liquid cooling by heat exchanger
  • Hollow shaft for water coolant by Hiteco rotary joint
  • Integrated 1Vpp or TTL encoder (opt.)
  • Joint Monitoring Sensor (opt.)
Category:

ADVANTAGES

  • Hiteco rotary joint has an easy maintenance and allows dry processing
  • JMS optional sensor allows to promptly report to the machine the loss in the rotary joint
  • Monitoring of vibrations and working conditions thanks to the iM Smart Sensor available as optional
  • Front nose suitable for c-axis and aggregates use or tool cooling distributor
