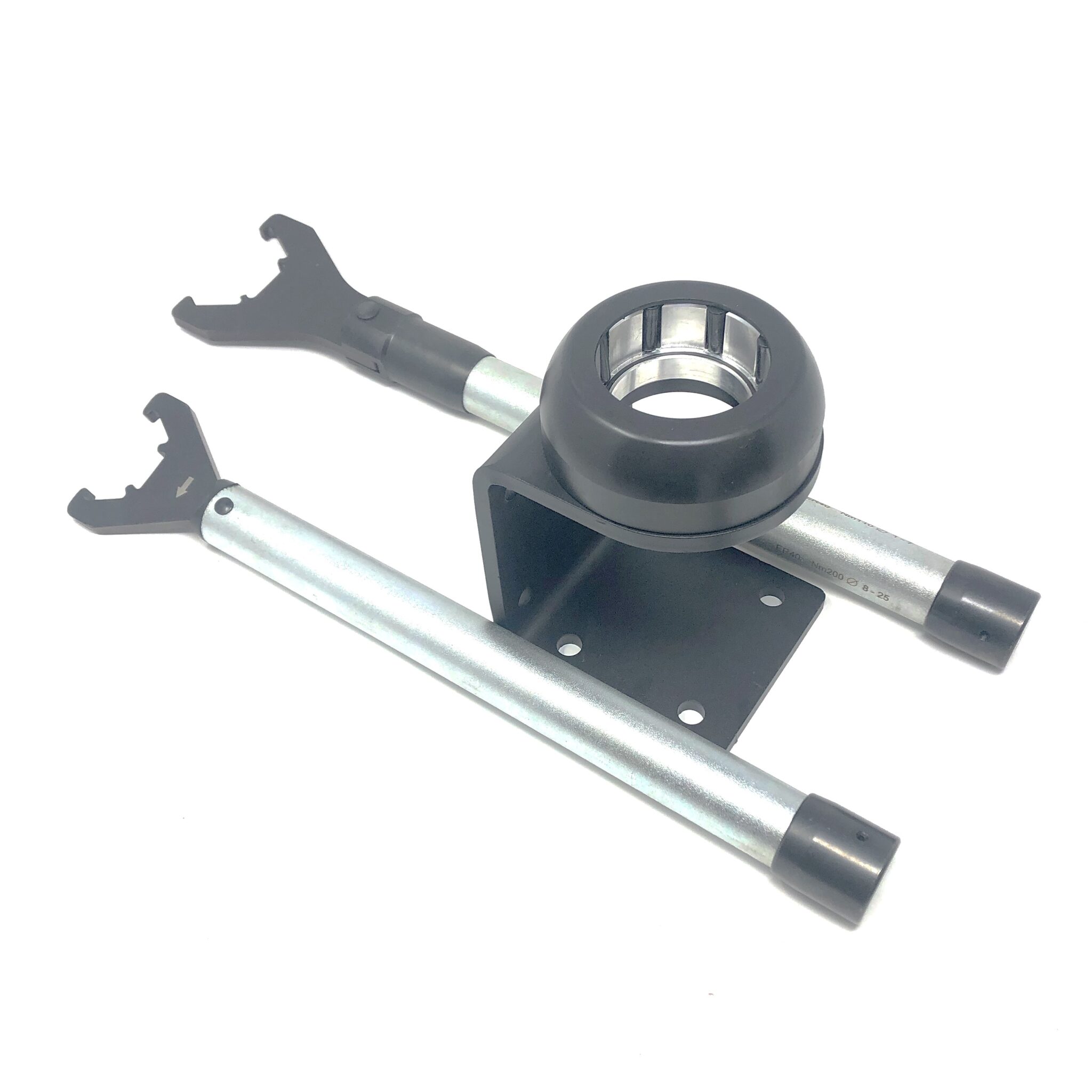

HSK 63 and ISO 40 w/ ER40, ER32 Tool Tightening Kit PN TTP-631

Holds HSK 63 A thru F tool holders with ER40 and ER32

Holds ISO40 tool holders with 63 mm flange

Bidirectional roller bearings that lock in place

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$660.00

HSK 63 and ISO 40 w/ ER40, ER32 Tool Tightening Kit, comes with ER40 and ER32  Torque Wrench

Specifications:

HSK 63 Tool Tightening Stand: For HSK 63 A thru F tool holders

ISO40 Tool Tightening Stand: For ISO40 tool holders with 63 mm diameter flange

Material: Steel Body with bidirectional roller bearings that lock in place when turned.

Manufacturer: Made in Italy.         Part No.: TTS-6340

Recommended Torque:

ER16 Hex Nut            42 ft/lbs under 1/16″ Collet I.D.           30 ft/lbs over 1/16″ Collet I.D.

ER16 Slotted Nut       42 ft/lbs under 1/16″ Collet I.D.            30 ft/lbs over 1/16″ Collet I.D.

ER20 Hex Nut            59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER20 Slotted Nut       59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER25 Mini Nut            25 ft/lbs under 1/16″ Collet I.D.           25 ft/lbs over 1/16″ Collet I.D.

ER25 Slotted Nut        100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER32 Slotted Nut       100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER40 Slotted Nut       130 ft/lbs under 1/16″ Collet I.D.          130 ft/lbs over 1/16″ Collet I.D.

SYOZ 25 Hook Nut    90 ft/lbs under 1/16″ Collet I.D.            90 ft/lbs over 1/16″ Collet I.D.

Maintenance: Protect from rust with rust preventative spray.

Compatibility: All HSK 63 tool holders. ISO40 tool holders with 63 mm diameter flange.

Weight 11 lbs
Dimensions 19.81 × 9.91 × 9.91 in
