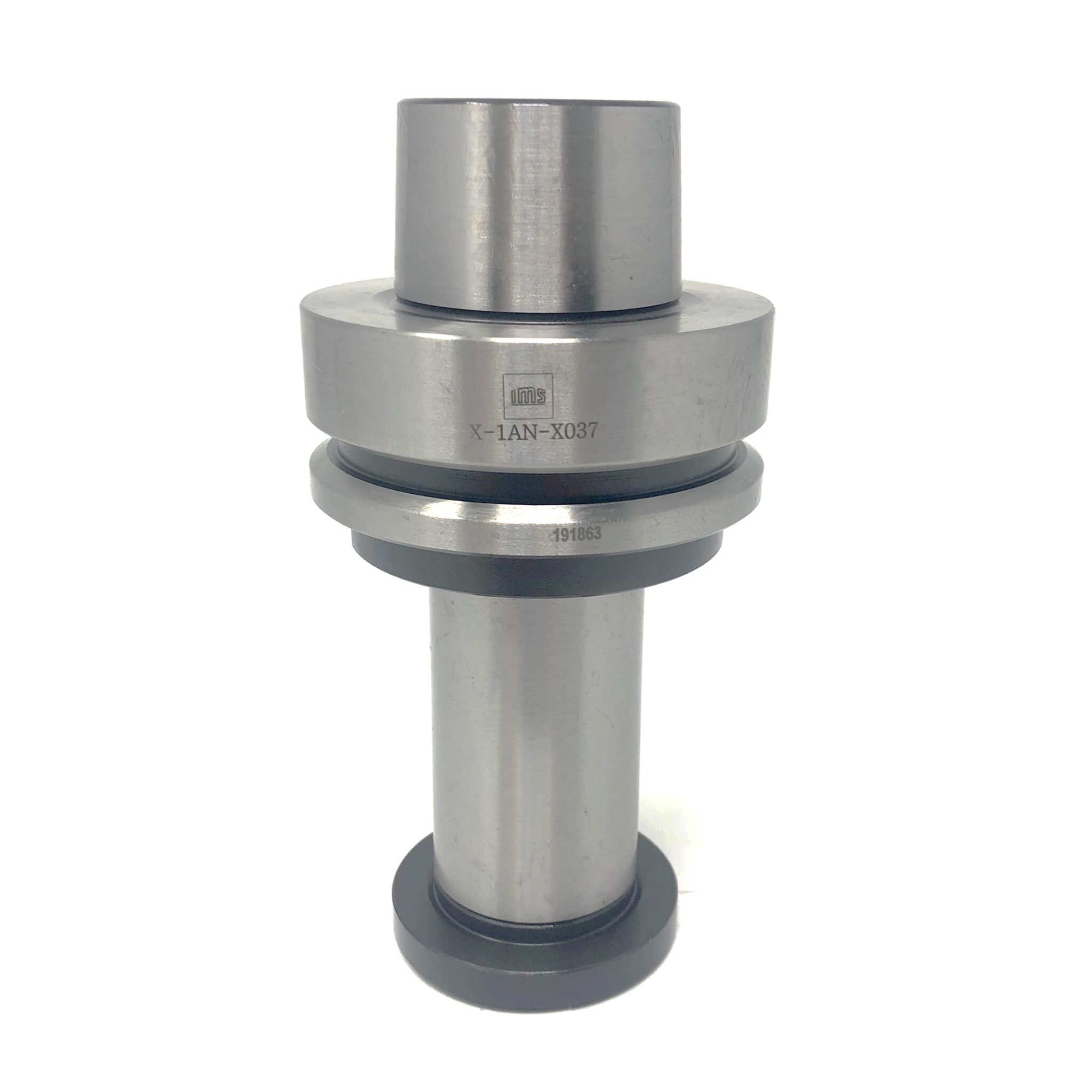

HSK 63F Milling Arbor with 1.25″ Diameter

P/N H30-055 Specifications:

HSK 63F Milling Arbor Size: 1.25″ diameter x 55mm length

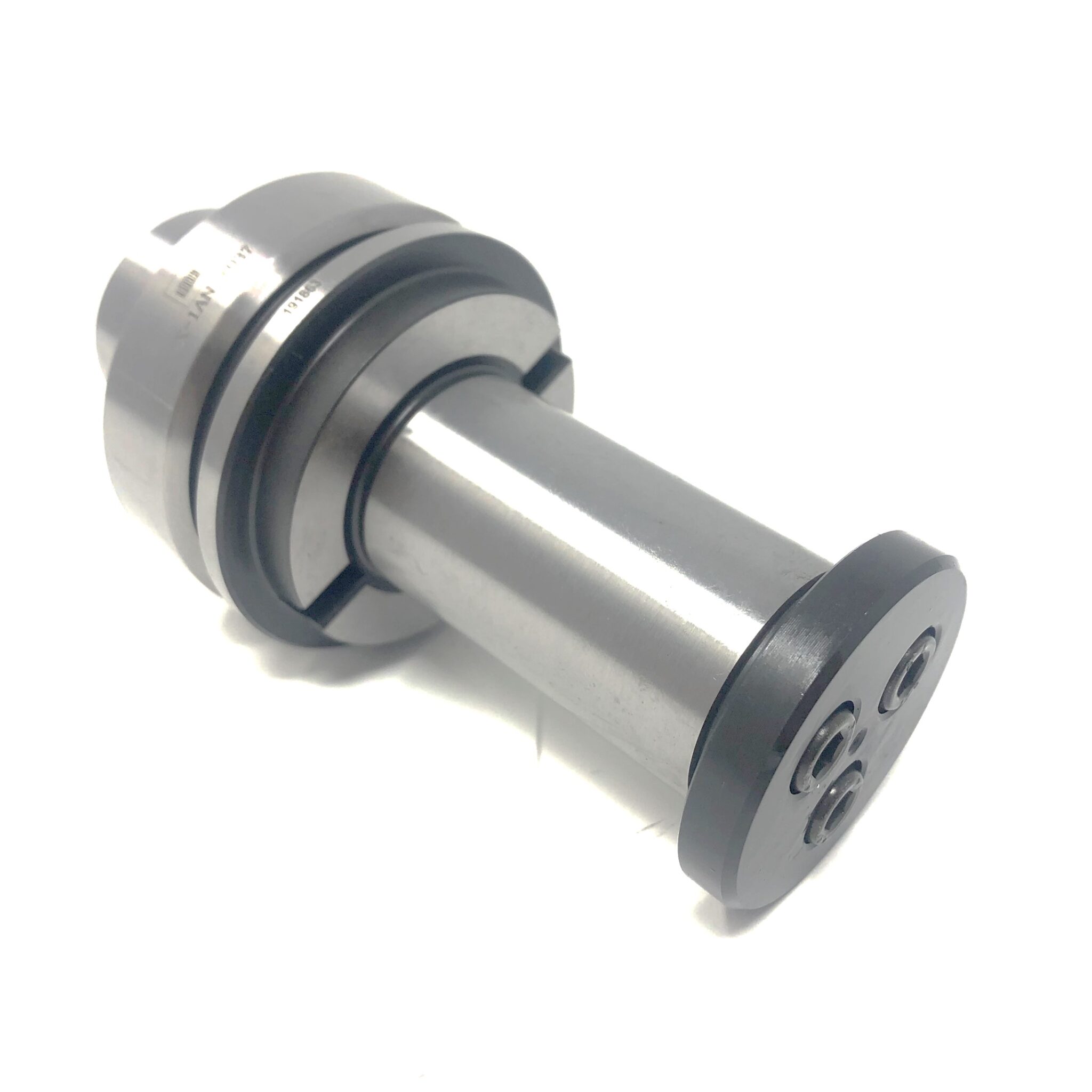

End Cap Note: Arbors come with a flanged end-cap. Upon request, the flanged end-cap can be replaced with a recessed end cap.

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Balance Grade: G2.5 @ 24,000 rpm

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

Compatibility: All HSK 63F spindles

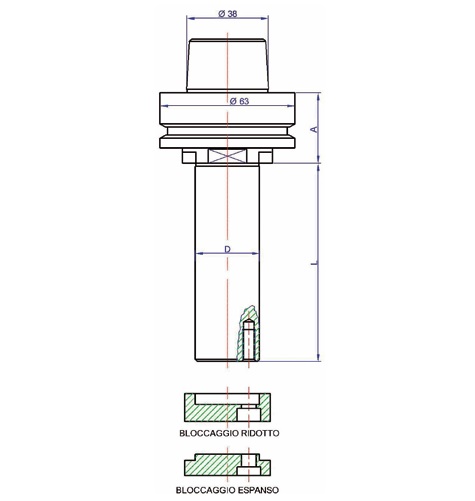

Dimensions (mm): L: 55   A: 33   D: 1.25″

Equivalent to IMS P/N 1AN-x037

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.
