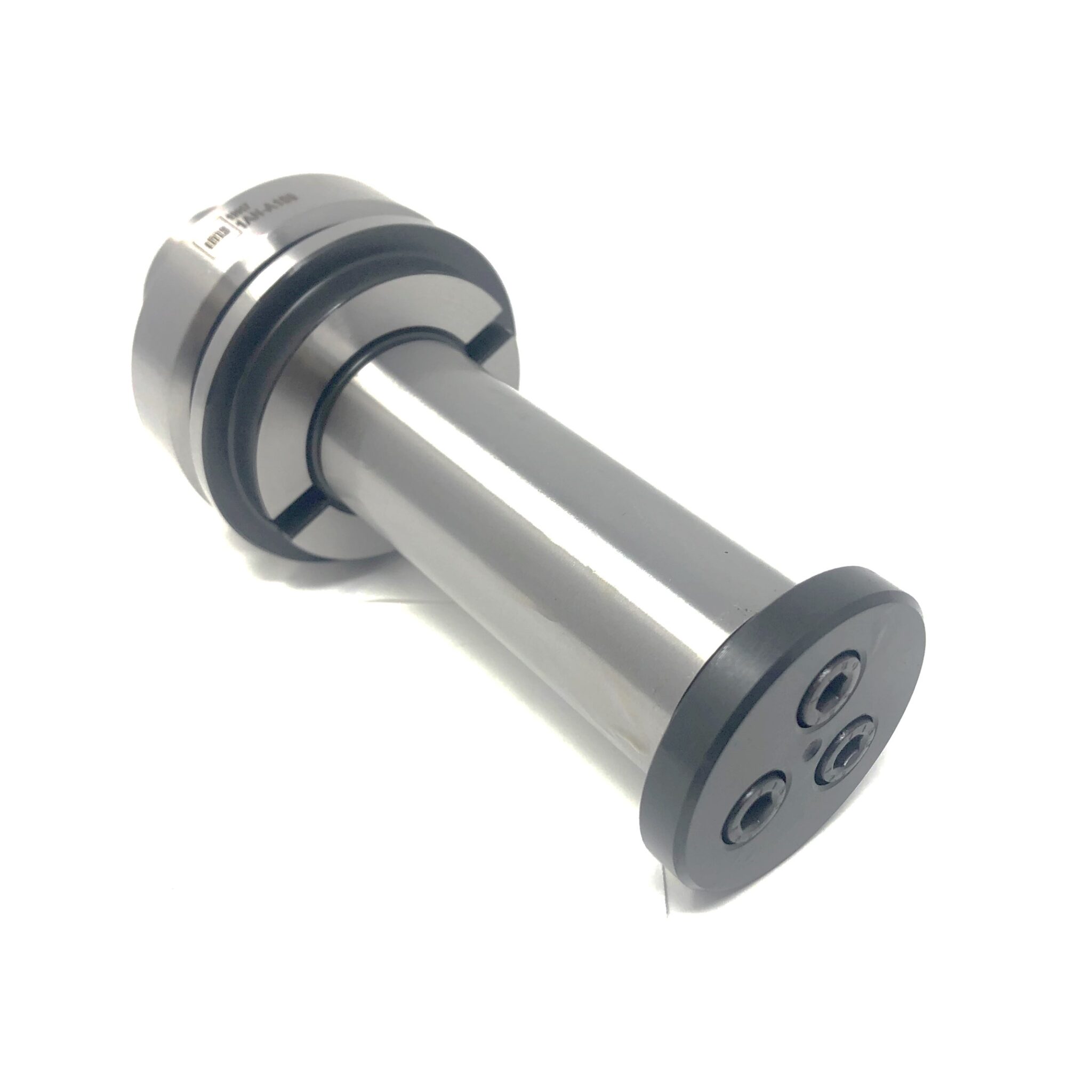

HSK 63F Milling Arbor P/N H30-080
HSK 63F Milling Arbor with 1-1/4″ Diameter
DIN 69893
Dimensions (mm): L: 80 A: 33 D: 1.25″
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
Original price was: $300.00.$240.00Current price is: $240.00. $180.00
HSK 63F Milling Arbor with 1.25″ Diameter
P/N H30-080 Specifications:
HSK 63F Milling Arbor Size: 1.25″ diameter x 80mm length
End Cap Note: Arbors come with a flanged end-cap. Upon request, the flanged end-cap can be replaced with a recessed end cap.
Material: Through hardened alloy steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Balance Grade: G2.5 @ 24,000 rpm
Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.
Compatibility: All HSK 63F spindles
Dimensions (mm): L: 80 A: 33 D: 1.25″
Equivalent to IMS P/N 1AN-A159
Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.
HSK World: HSK Links
| Weight | 3.3 lbs |
|---|---|
| Dimensions | 7.8 × 3.12 × 3.12 in |
