HT Series
- Suitable for machining wood and aluminium
- Air and lubrication passage through the spindle (Air Tool, Oil Mist, MQL) to improve the machining efficiency of wood, light alloys and composite materials
- Square extruded section optimised for maximum versatility in the different applications
- Possibility of installing the encoder in the same casing size
- iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link)
ADVANTAGES
- HIGH POWER
High power (25 KW) starting from 9000 RPM with asynchronous technology
- STIFFNESS
5 bearings in the long nose version for greater precision in demanding machining operations
- VERSATILE LAYOUT
Maximum versatility in the different applications such as bi-rotative heads, 3-axis CNC and robotic applications

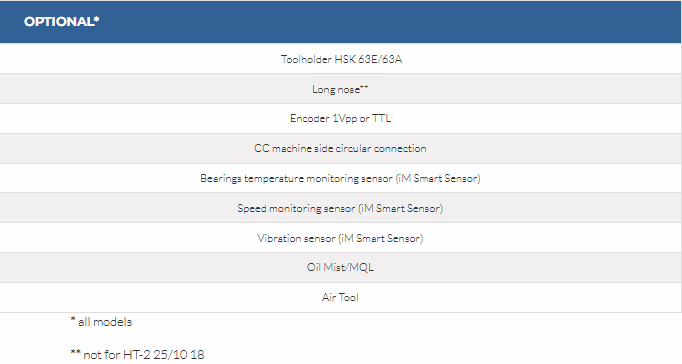

- WIDE RANGE OF OPTIONALS
Encoder and Mql – Oil Mist (“aerosol oil”) for optimal precision and lubrication when machining aluminium parts
