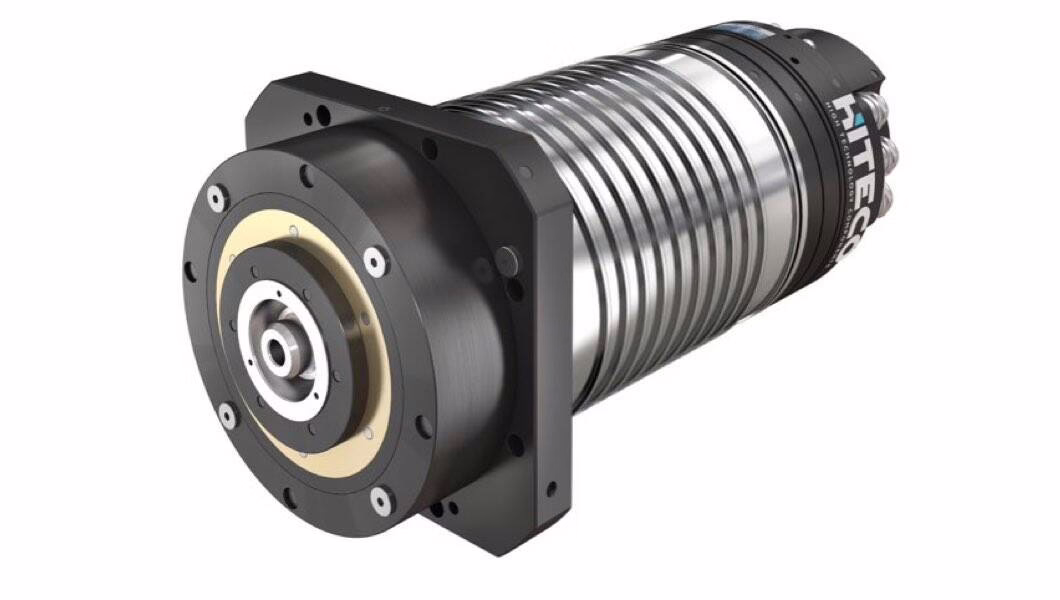

High-power electrospindle for milling and drilling on metal, aluminum and composite materials. Compact design allows installation on cnc machine, milling heads with direct drive (torque motors) or mechanically.

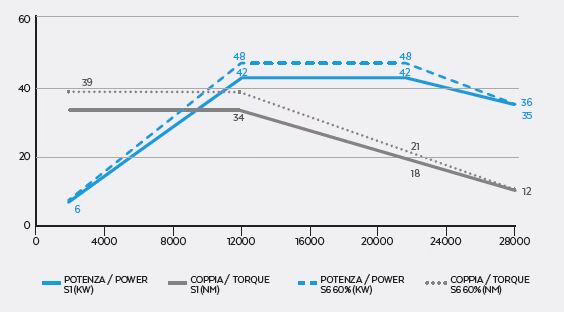

24000 RPM max speed with grease lubrication makes this model suitable for the processing of composite materials for aerospace components
With ball bearings oil lubrication optional (28000 RPM), spindle can perform on metal surfaces

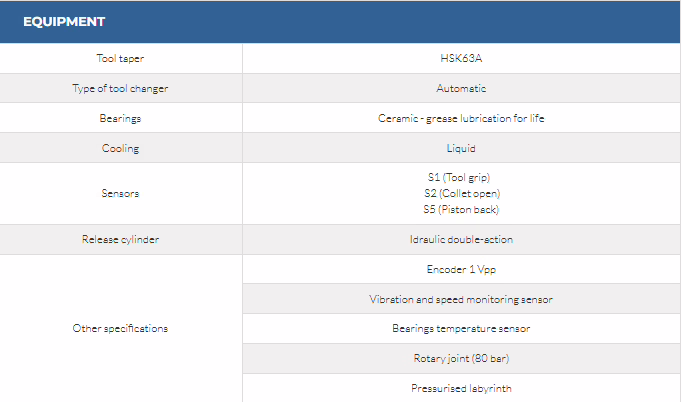

On-board triaxial accelerometer: the sensor measures the vibrations in all directions
The spindle is equipped with a rotary joint that allows to cool the tool during the processing through the flow of refrigerant fluid through the shaft (CTS) or through minimal air-oil lubrication
Around the electrospindle nose there is a tool cooling distributor enable to cool it in each machine way
Front and back bearings are monitored from two temperature sensors able to signal abnormal operating temperatures
It is available the axial shaft displacement sensor as optional. It is able to report to the machine the spindle nose movement during the processing, allowing the machine to correct the tool positioning
