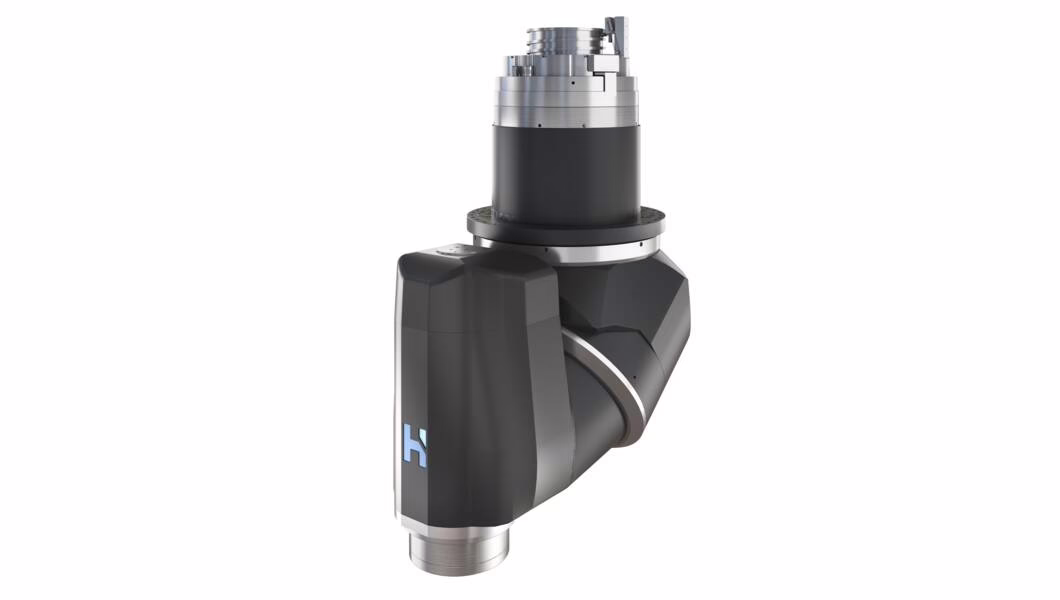

Birotary head for high-precision milling of stainless steel molds and cast iron, aluminum and metal components, for the automotive, NEV (new electric vehicle), Railway and Aerospace sectors. The birotary head can be paired with Hiteco’s spindle: MX-2 42/6 24, MX-2 47/3 12 and MX-2 60/3 12

• Two axis direct drive allows to guarantee a higher surface finishing level and a higher positioning speed than conventional drive heads

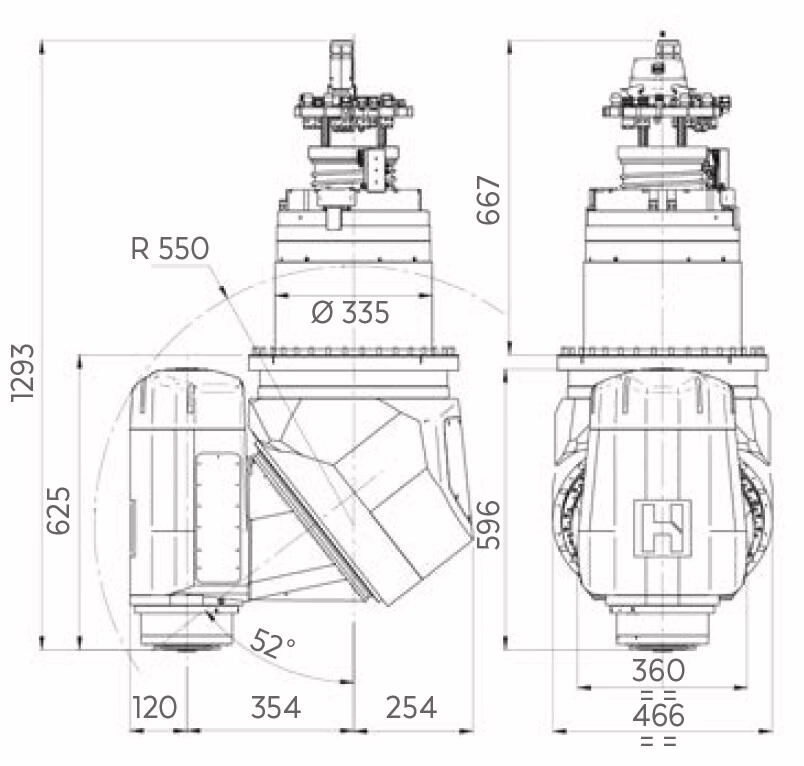

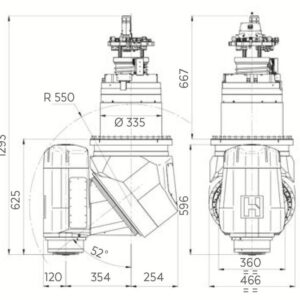

• The birotary head features an angle of incidence of the axes of 50° and the presence of an offset of 354 mm between the C axis and the spindle axis in a vertical position.
• The high locking torque of the C-axis and A-axis brakes ensure the rigidity necessary to carry out heavy CNC roughing operations
• The c-axis is equipped with an axial-radial bearing with large diameter rollers combined with counter-support roller bearings to increase the stiffness of the joint
• Direct drive of the axes made with torque motors with high torque density, high overload capacity and low losses
• Electrospindle and torque motor cooling circuit designed to avoid thermal deformations, guaranteeing maximum cutting precision during machining
• The wide range of electrospindles available allows the use of the birotary head for the production of components made of different materials
