SGX-130 I40
Electrospindle for glass, stone and granite processing with high-speed asynchronous motor. Ideal for milling, drilling, cutting out, polishing and engraving. Compact design to be installed on CNC machines with horizontal plane, 5-axes machines and robots.

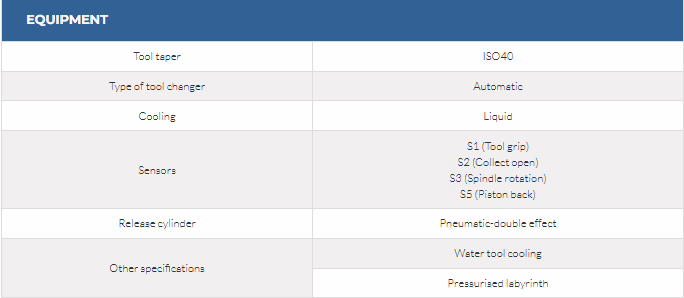

- Tools holder available: BT40 and ISO40 Hiteco (symmetrical keys)

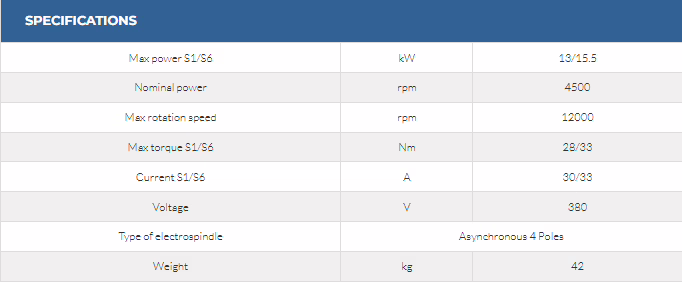

- Max speed 12000 RPM. With ceramic ball bearings option 15000 RPM
- Shaft index through encoder TTL
- Liquid cooling through heat exchanger
- Hollow shaft for water coolant by Hiteco rotary joint
- Main components in INOX steel
- Integrated 1Vpp or TTL encoder (opt.)
- Joint Monitoring Sensor (opt.)
ADVANTAGES
- Hiteco rotary joint has an easy maintenance and allows dry processing
- JMS optional sensor allows to promptly report to the machine the loss in the rotary joint
- Monitoring of vibrations and working conditions thanks to the iM Smart Sensor available as optional

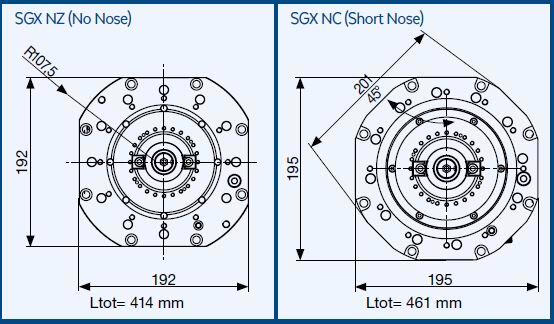

- Front nose suitable for c-axis and aggregate use or tool cooling distributor. Without nose version (NZ) for the use in small footprint applications such as birotary heads and robots
