SXM-250 I40
Electrospindle for stone, granite and gres porcelain tile processing with high-speed asynchronous motor. Ideal for drilling and CNC milling. Compact design to be installed on CNC milling machines, 5-axes machines and robots.

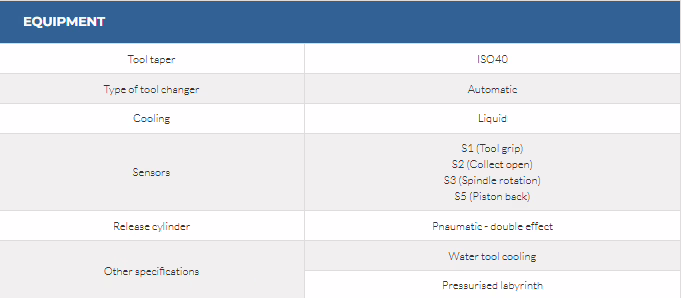

- Tools holder available: BT40 and ISO40 (symmetrical keys)
- Max speed 10000 RPM. With ceramic ball bearings option 12000 RPM

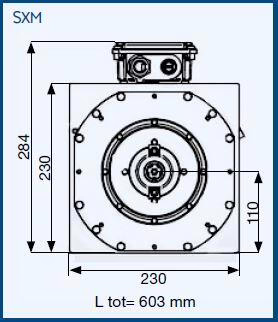

- Min distance reduced between spindle axe and support surface for blades use: 110 mm
- Assembly on housing sides through interface flanges
- Shaft index through encoder TTL
- Liquid cooling through heat exchanger
- Hollow shaft for water coolant by Hiteco rotary joint
- Main components in INOX steel
- Integrated 1Vpp or TTL encoder (opt.)
- Joint Monitoring Sensor (opt.)
ADVANTAGES
- Hiteco rotary joint has an easy maintenance and allows dry processing
- JMS optional sensor allows to promptly report to the machine the loss in the rotary joint

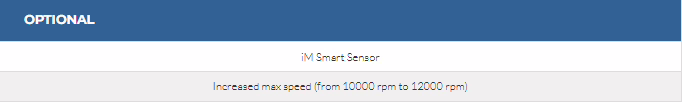

- Monitoring of vibrations and working conditions thanks to the iM Smart Sensor available as optional

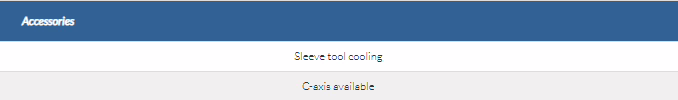

- Front nose suitable for tool cooling distributor assembly
