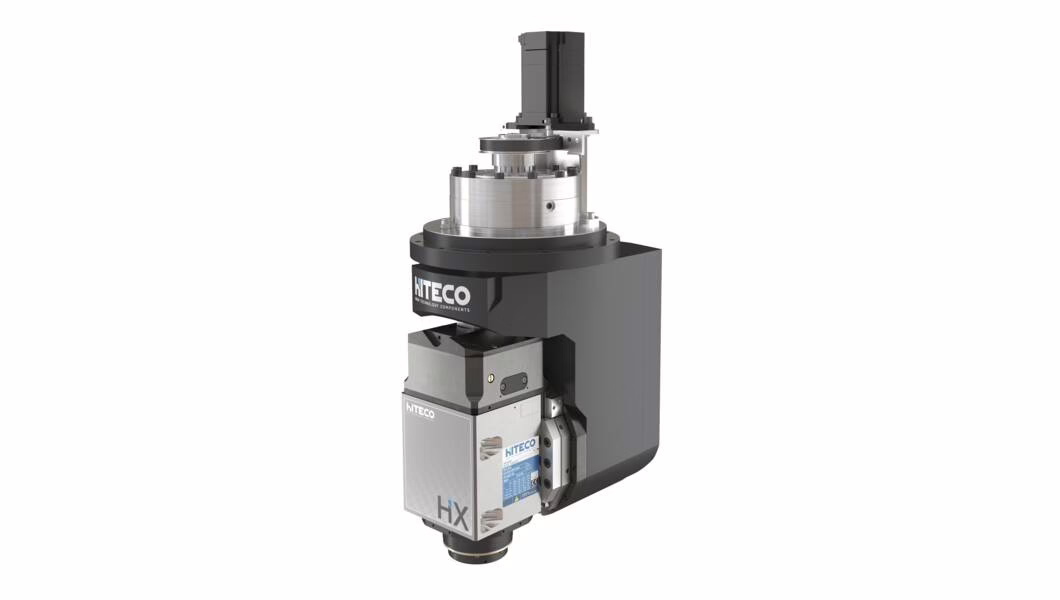

TILT H-PLUS COMPACT HX 200

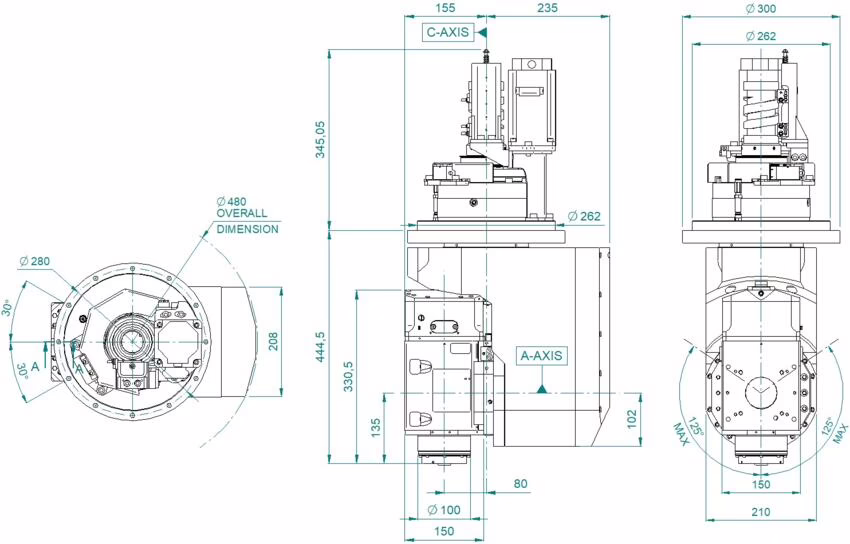

  • Maximum coverage of processing areas (Ø 480 mm overall dimension)
  • Minimum dimensions in rotation for a compact machine design
  • High positioning accuracy (1 arcmin)
Categories: ,

ADVANTAGES

  • Rotation cylinder reduction from Ø630 to Ø480: It is possibile to move the C axis closer to the Z axis guides.
  • Working plane area increased: with the same guides lenghts the worktable dimensions are increased 80 mm each edge.
