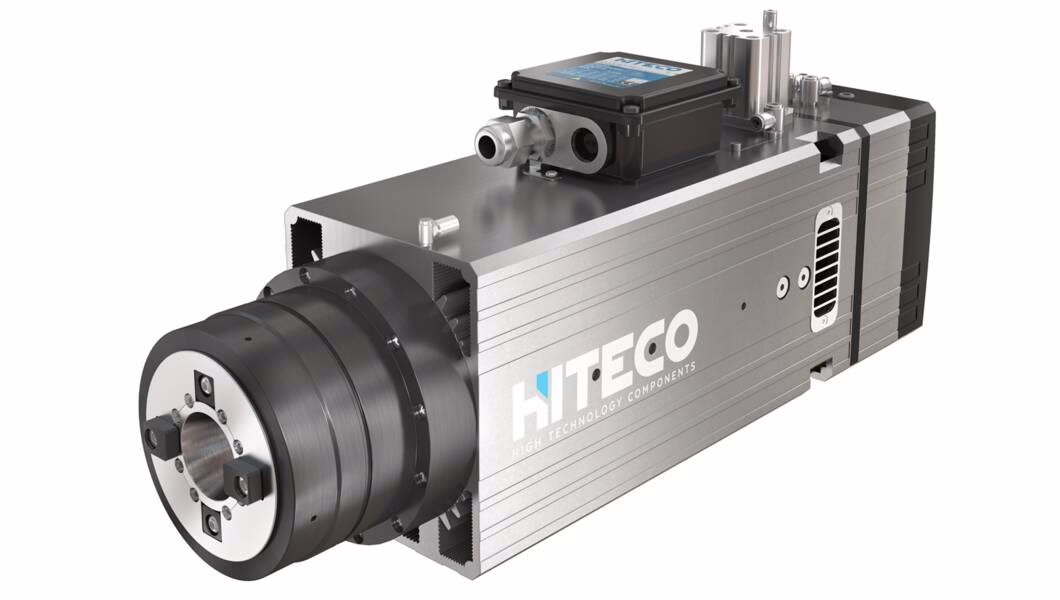

GXM-95 I40
Electrospindle for glass and stone processing with high-speed asynchronous motor. Ideal for milling, drilling, cutting out, polishing, bevelling and engraving. Compact design to be installed on CNC machines with vertical plane (drills), horizontal and robots.
- Tools holder availabile: BT40 and ISO40 Hiteco
- Max speed 12000 RPM. With ceramic ball bearings option 15000 RPM
- Air cooling
- Tool holder doesn’t need drive keys for an easy manage of the tool changer
- Main components in INOX steel
- Hiteco rotating water joint for tools cooling
- Sleeve tool cooling
- Integrated 1Vpp or TTL encoder (opt.)
- Joint Monitoring Sensor (opt.)
ADVANTAGES
- Hiteco rotary joint has an easy maintenance and allows dry processing
- JMS optional sensor allows to promptly report to the machine the loss in the rotary joint
- Monitoring of vibrations and working conditions thanks to the iM Smart Sensor available as optional
- Front nose suitable for suction cups or tool cooling distributor
