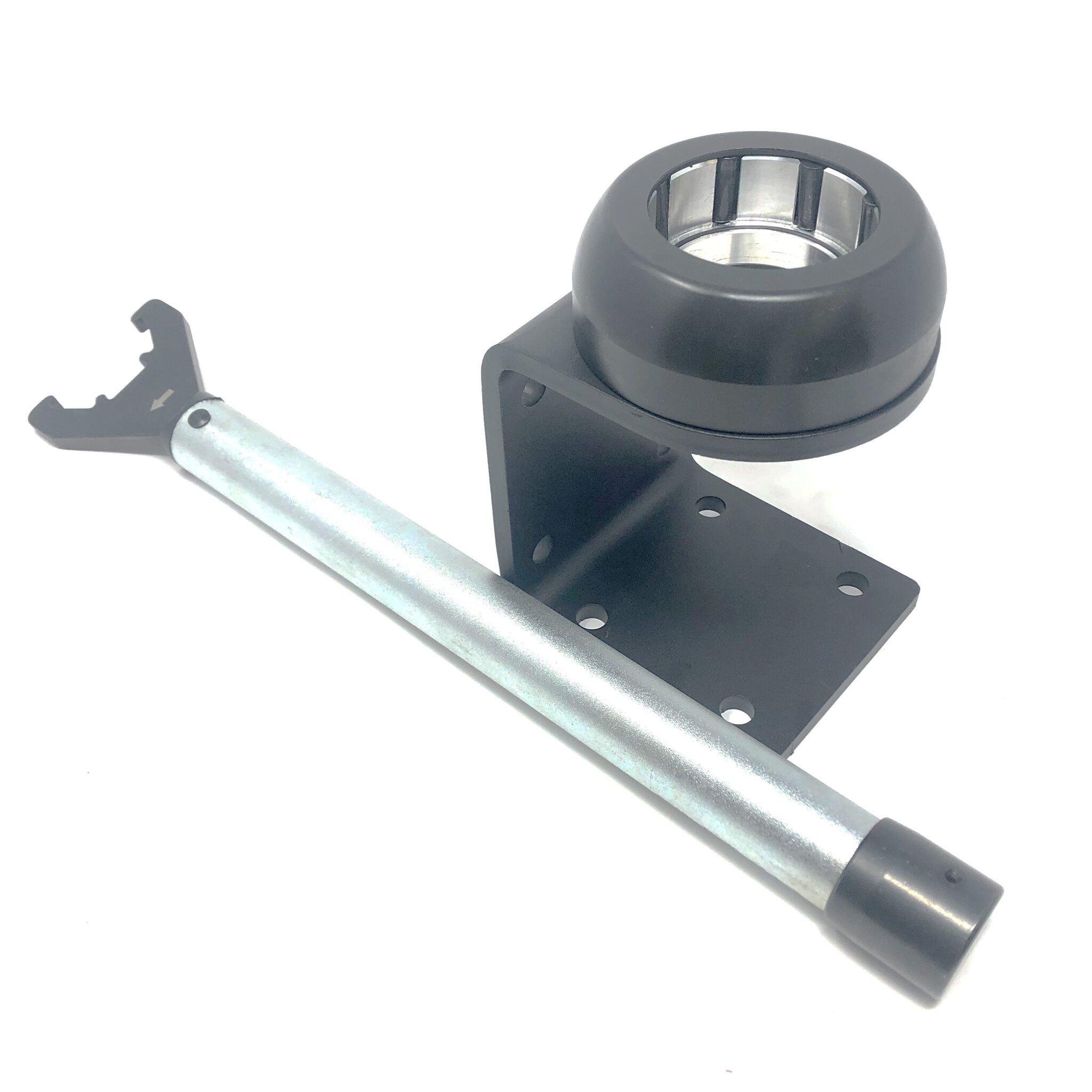

HSK 63 and ISO 40 w/ ER32 Tool Tightening Kit PN TTP-633

HSK 63 and ISO 40 Tool Tightening Stand Kit, comes with ER32 Torque Wrench

Specifications:

HSK 63 Tool Tightening Stand: For HSK 63 A thru F tool holders

ISO40 Tool Tightening Stand: For ISO40 tool holders with 63 mm diameter flange

Material: Steel Body with bidirectional roller bearings that lock in place when turned.

Manufacturer: Made in Italy.         Part No.: TTS-6340

Recommended Torque:

ER16 Hex Nut            42 ft/lbs under 1/16″ Collet I.D.           30 ft/lbs over 1/16″ Collet I.D.

ER16 Slotted Nut       42 ft/lbs under 1/16″ Collet I.D.            30 ft/lbs over 1/16″ Collet I.D.

ER20 Hex Nut            59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER20 Slotted Nut       59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER25 Mini Nut            25 ft/lbs under 1/16″ Collet I.D.           25 ft/lbs over 1/16″ Collet I.D.

ER25 Slotted Nut        100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER32 Slotted Nut       100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER40 Slotted Nut       130 ft/lbs under 1/16″ Collet I.D.          130 ft/lbs over 1/16″ Collet I.D.

SYOZ 25 Hook Nut    90 ft/lbs under 1/16″ Collet I.D.            90 ft/lbs over 1/16″ Collet I.D.

Maintenance: Protect from rust with rust preventative spray.

Compatibility: All HSK 63 tool holders. ISO40 tool holders with 63 mm diameter flange.
