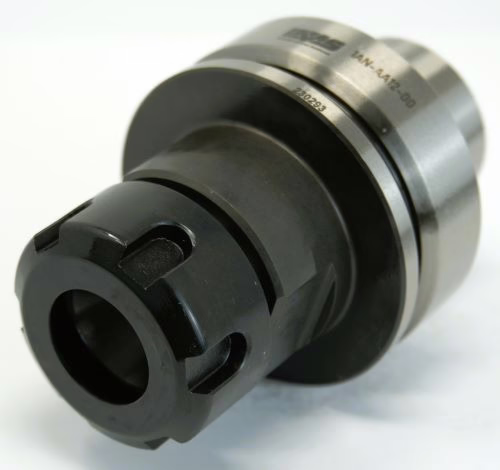

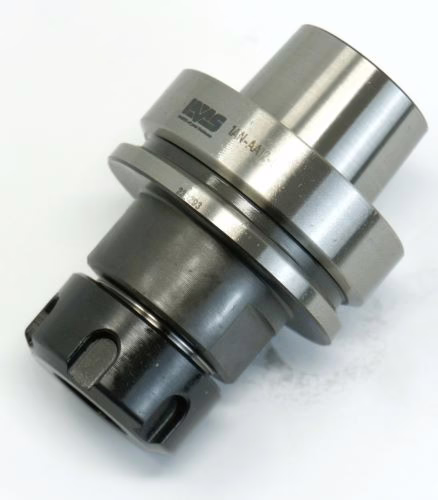

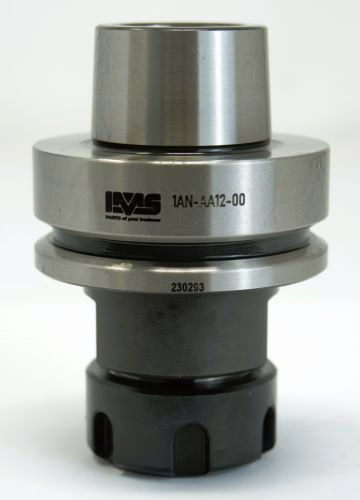

HSK 63F ER25 Short Style Tool Holder P/N H30-E-S
HSK 63F Tool holder with nut
DIN 69893
Collet Type: ER25 Capacity 1 to 16 mm

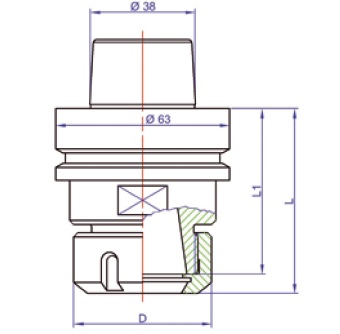

Dimensions (mm): L: 60 L1: 50 D: 42
Call for back order status or multiple order discount.
1-714-307-2332 or send inquiries to sales@hsspindles.com
Original price was: $199.50.$160.00Current price is: $160.00. $144.00
HSK 63F Tool Holder with Nut
P/N H30-E-S Specifications:
HSK 63F Tool Holder Collet Size: ER25
Material: Through hardened alloy steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Recommended Torque: 77 ft/lbs
Balance Grade: G2.5 @ 24,000 rpm
Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.
Compatibility: All HSK 63F spindles
Dimensions (mm): L: 72.5 L1: 62 D: 42
Equivalent to IMS P/N WF203 or AA12. The “A” number is the current part number.
Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.
HSK World: HSK Links
| Weight | 2.75 lbs |
|---|---|
| Dimensions | 5.85 × 3.12 × 3.12 in |
