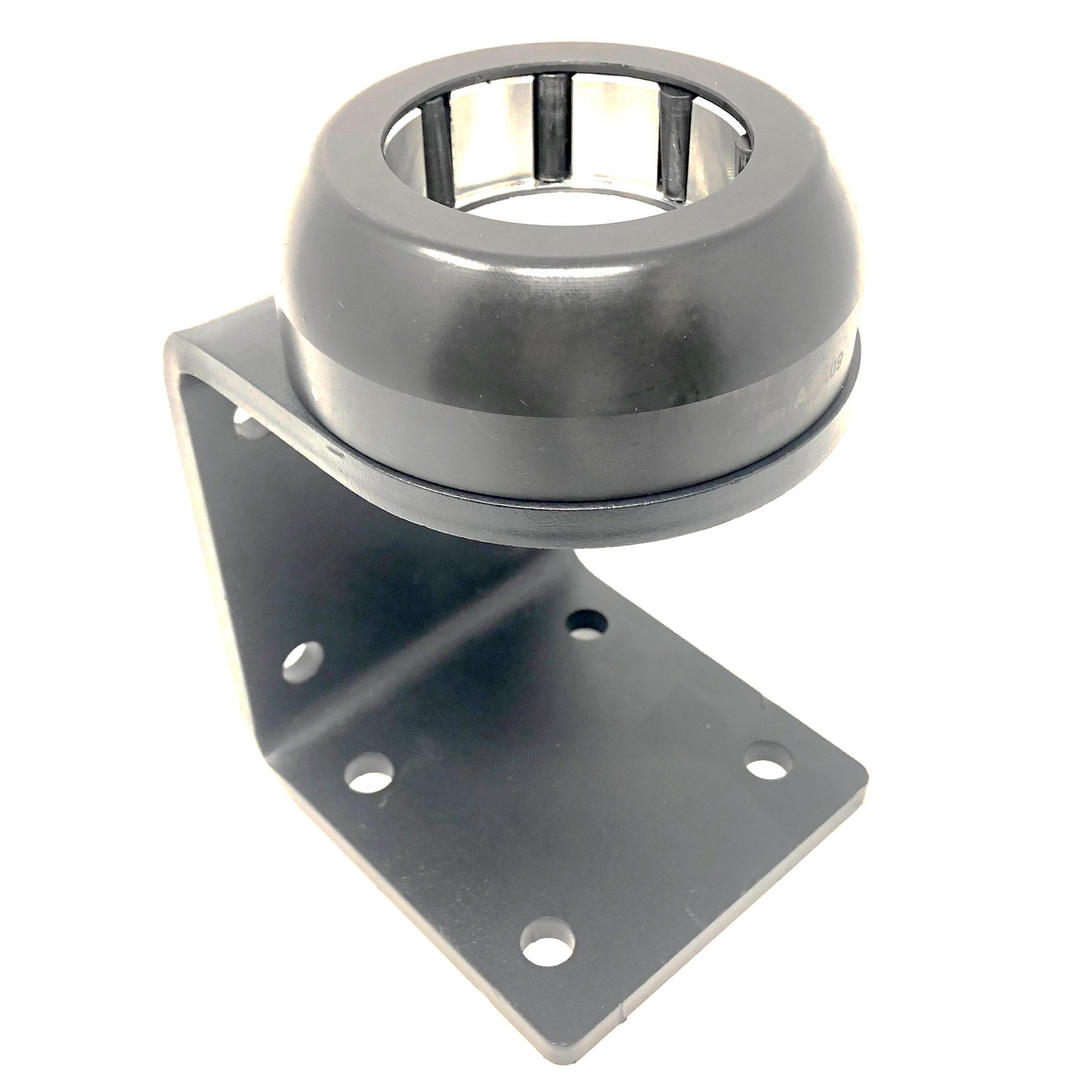

ISO30 Tool Tightening Stand 50mm Size P/N TTS-30

ISO30 Tool Tightening StandSpecifications:

ISO30 Tool Tightening Stand: For 50 mm ISO30 Tool Holders

Material: Steel Body with bidirectional roller bearings that lock in place when turned.

Manufacturer: Made in Italy.

Part No.: TTS-30

Recommended Torque:

ER16 Hex Nut            42 ft/lbs under 1/16″ Collet I.D.           30 ft/lbs over 1/16″ Collet I.D.

ER16 Slotted Nut       42 ft/lbs under 1/16″ Collet I.D.            30 ft/lbs over 1/16″ Collet I.D.

ER20 Hex Nut            59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER20 Slotted Nut       59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER25 Mini Nut            25 ft/lbs under 1/16″ Collet I.D.           25 ft/lbs over 1/16″ Collet I.D.

ER25 Slotted Nut        100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER32 Slotted Nut       100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER40 Slotted Nut       130 ft/lbs under 1/16″ Collet I.D.          130 ft/lbs over 1/16″ Collet I.D.

SYOZ 25 Hook Nut    90 ft/lbs under 1/16″ Collet I.D.            90 ft/lbs over 1/16″ Collet I.D.

ISO30 Pull Stud         36 ft/lbs

Maintenance: Protect from rust with rust preventative spray.

Compatibility: All 50mm Diameter ISO30 Tool Holders
