HSK 63E ER16 Extra Long Style Tool Holder P/N H29-C-XL


HSK 63E ER16 Extra Long Style Tool Holder P/N H29-C-XL

HSK 63E Tool holder with nut

DIN 69893

Collet Type: ER16    Capacity 1 to 10 mm

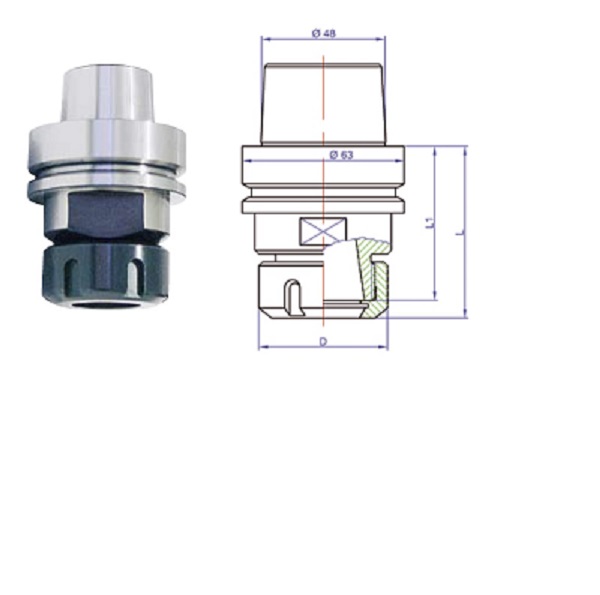

Dimensions (mm): L: 160   L1: 150   D: 22

Call for back order status or multiple order discount.

1-714-307-2332 or send inquiries to sales@hsspindles.com

$320.00 $288.00

SKU: H29-C-XL Category:
  • Description
  • Additional information


HSK 63E Tool Holder with Nut

P/N H29-C-XL Specifications:

HSK 63E Tool Holder Collet Size: ER16

Material: Through hardened alloy steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 42 ft/lbs Over  1/16″ Collet I.D.  and 30 ft/lbs Under 1/16″ Collet I.D.

Balance Grade: G2.5 @ 24,000 rpm

Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

Compatibility: All HSK 63E spindles. P/N H29-C-XL.

Dimensions (mm): L: 160    L1: 150     D: 22

Equivalent to IMS P/N WE243-L160

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.

HSK World: HSK Links

Additional information

Weight.64 kg
Dimensions6 × 6 × 16 cm
