QX-2 10/12 24 63F

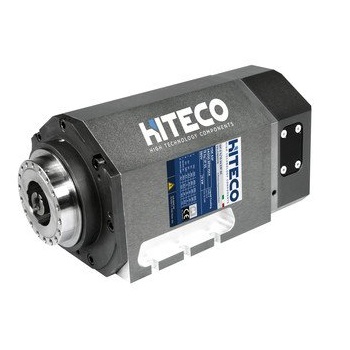

HSK 63F Spindle

Liquid Cooled, 13hp, 380V, 4P, 40 Pounds

Ceramic Ball Bearings, 24,000 RPM

Taper Cleaning, Labyrinth with Air Seal, Inverter Supply

Single Effect Pneumatic Cylinder, Sensors S1. S2, S3

Automatic Tool Changer, Grease Lubrication

Additional Options:

Encoder 1 Vpp or TTL, Voltage 220V, Sensor S5

Quick Connection PP, Speed Monitoring

Bearings Temperature Monitoring, Vibration Sensor

Robotech Series by Hiteco

Part Number: QX-2 10/12 24 63F

Multiple Order Discounts Available

Call (714) 307-2332 or send inquiries to: sales@hsspindles.com

  • Description


HSK 63F Spindle

Part Number: QX-2 10/12 24 63F

Code: QX.X00.L02.00

Robotech Series by Hiteco

The QX-2 10/12 24 63F spindle is a very high quality spindle made in Italy. Rugged design, built to last. This spindle is built to last for many years. We have repaired many brands of spindles through out the years and can say with certainty that you will not find a better spindle for the price.

Maximum Speed: 24,000 rpm

Horsepower: 13 hp

Cooling Method: Liquid Air Cooling

Country of Origin: Italy

QX-2 10/12 24 63F Layout: link

QX-2 10/12 24 63F Specifications: link

Complete Robotech Catalog here: link

Weight: 40 lbs

Paypal financing available if approved by Paypal. Interest free if paid off in 6 months.
