TILT G

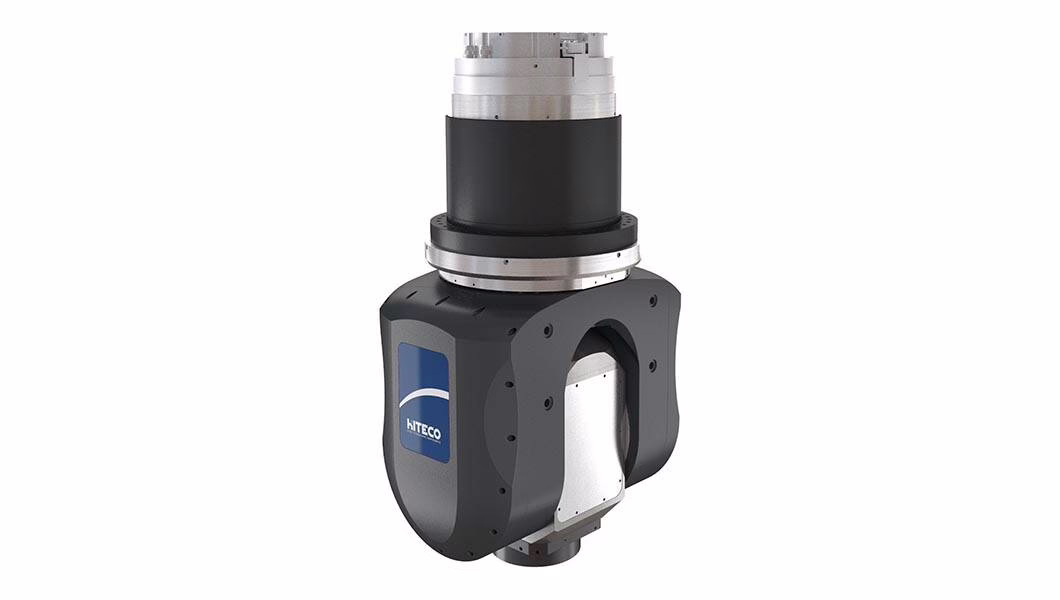

Birotary head for high precision milling for metal, aluminium and composites for automotive, NEV (new electric veichle), Railway and Aerospace. The birotary head can be paired with Hiteco’s spindle: MX 42/12 24 and MX 42/6 24.
- Two axis direct drive allows to guarantee a higher surface finishing level and a higher positioning speed than conventional drive heads
- Absolute and incremental encoder versions available

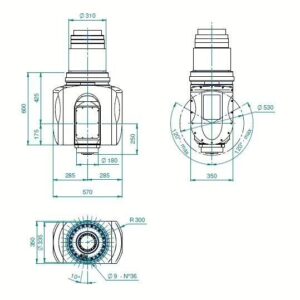

- The compact dimensions of the fork allow the biroaty head to rotate in space in a small volume and possibly to position itself inside the workpiece
ADVANTAGES
- Birotary head body made of cast iron in order to guarantee max stiffness
- The c-axis is equipped with an axial-radial bearing with large diameter rollers
- Direct drive of the axes made with torque motors with high torque density, high overload capacity and low losses
- Electrospindle and torque motor cooling circuit designed to avoid thermal deformations, guaranteeing maximum cutting precision during machining
